Gain: 20 dB
Technology: Si
Mounting Style: SMD/SMT
Test Frequency: 2.14 GHz

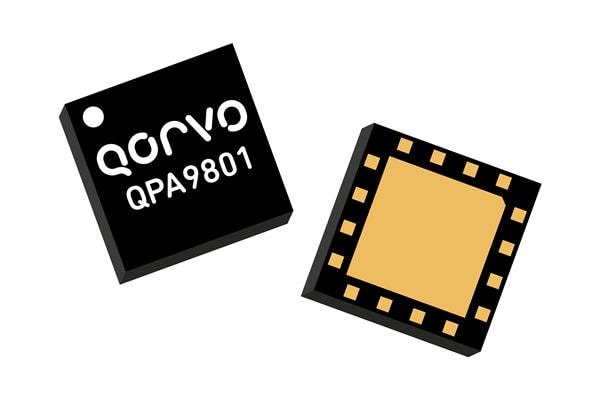

Development Kit: QPA9801PCB401
Input Return Loss: 23 dB
NF - Noise Figure: 1.5 dB
Moisture Sensitive: Yes
Operating Frequency: 1.805 GHz to 2.4 GHz
Operating Supply Current: 296 mA
Operating Supply Voltage: 5 V
P1dB - Compression Point: 26.4 dBm
OIP3 - Third Order Intercept: 41.6 dBm
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
