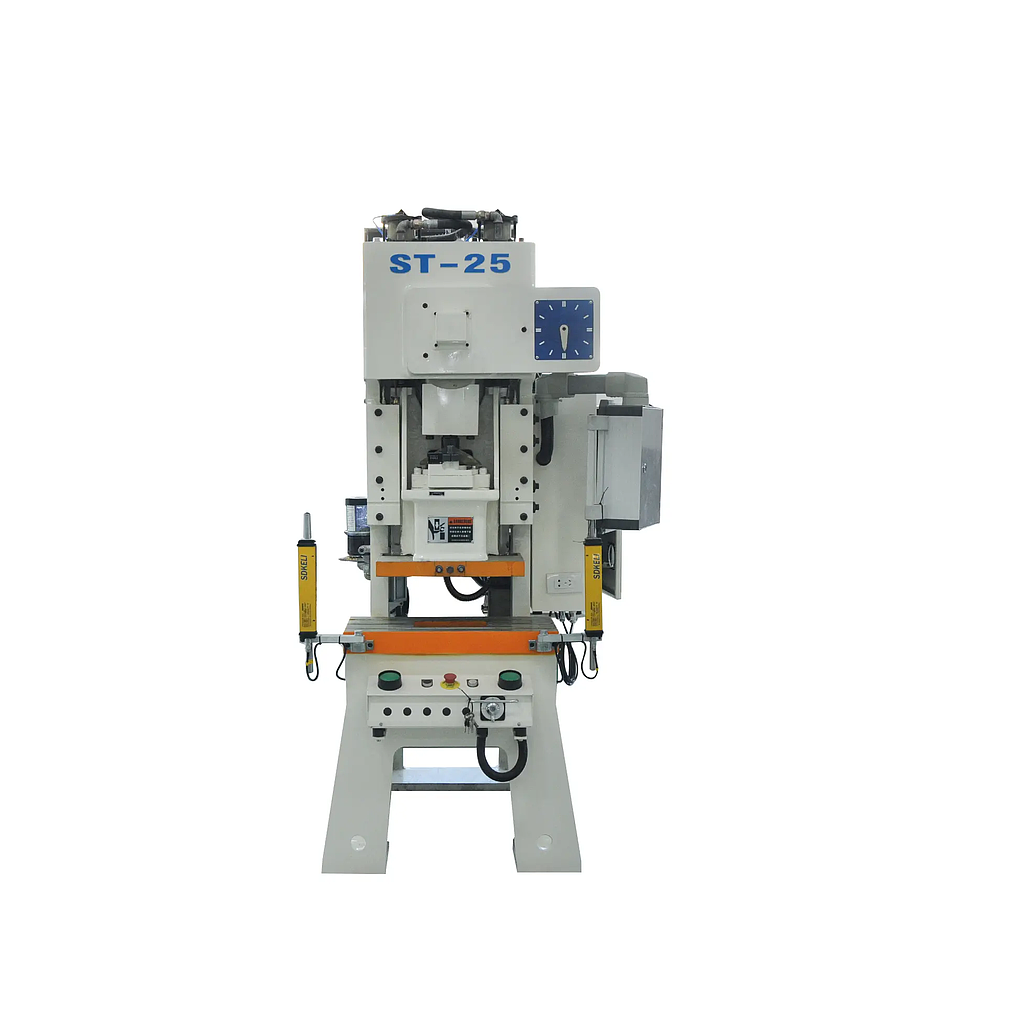

QIAOSEN ST-25V Frame Single Crank Press Machine

Press capacity (Ton): 25

Rated tonnage point (mm): 3.2

Slide strokes per minute (S.P.M): 60~140

Slide stroke length (mm): 60

Max die height mm): 200

Slide adjustment amount (mm): 50

Slide size (mm): 470*230*50

Bolster size(mm): 680*300*70

Slide center to machine distance (mm): 155

Platform to floor distance (mm): 795

Shank hole (mm): Φ38.1

Main motor power (KW*P): 3.7*4

slide adjust device: /

Air pressure (kg*cm²): 6

Press accuracy grade(Grade): JIS 1

Press dimension(L*W*H)mm: 1280*850*2200

Press weight (Tons): 2.1

Die cushion capacity(Ton):/

Die cushion stroke (mm):/

Die cushion active area (mm²):/
