Gain: 2.9 dBi, 1.7 dBi, 1.8 dBi, 3.4 dBi, 3.8 dBi, 4.2 dBi

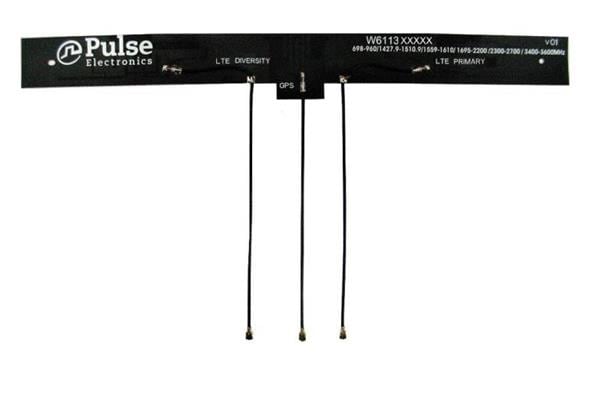

Style: T-Bar Flex
Width: 20.4 mm
Length: 224.4 mm
Impedance: 50 Ohms
Cable Type: 100 mm RF1.13 x 3
Application: RF Environments, Radio Modules, Security, Video, Graphics, IoT Devices, SmartGrid, Meters, Remote Monitoring, Sensor Networks, Transportation, Tracking
Unit Weight: 29 g
Cable Length: 100 mm
Polarization: Linear
Power Rating: 3 W
Mounting Style: Adhesive Mount
Number of Bands: 6 Band
Center Frequency: 750 MHz, 868 MHz, 900 MHz, 1469 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3500 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 3.6 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: UHF
Antenna Connector Type: U.FL
Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS
Protocol - WiFi - 802.11: WiMAX
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
