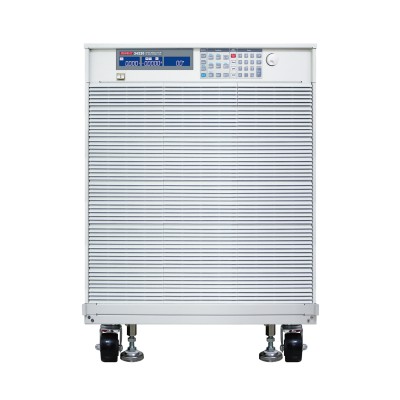

Prodigit 34220A Compact High Power DC Electronic Load (20KW,64A/640A,600V)

Power: 20KW
Current: 0~64A/0~640A
Voltage: 0~600V
Min.Operation Voltage: 10V@640A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 64A/0~640A
Resolution: 1.067mA/10.67mA
Accuracy: ±0.1%
CR mode:
Range: 0.9375~11250Ω/0.0096~0.9375Ω
Resolution: 0.0177mS/0.016mΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 2000W/20000W
Resolution: 33.4mW/334mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 64A/64~640A, ±0.1%
Power : 2000W/20000W, ±0.125%
Short circuit current: 640A
Dimension (HxWxD): 885 x 647 x 766 mm
Weight: 220 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
