Power: 10KW
Current: 0~30A/0~300A
Voltage: 0~150V
Min.Operation Voltage: 50V at 300A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~30A/0~300A
Resolution: 0.5mA/5mA
Accuracy: 0.1% setting + 0.2% range
CR mode:
Range: 3000-0.5Ω/0.5-0.0333Ω
Resolution: 33.33uS/9uΩ
Accuracy: ±0.2%
CV mode:
Range: 150V
Resolution: 2.5mV
Accuracy: ±0.05%
CP mode:
Range: 1000W/10000W
Resolution: 16.7mW /167mW
Accuracy: ±0.5%

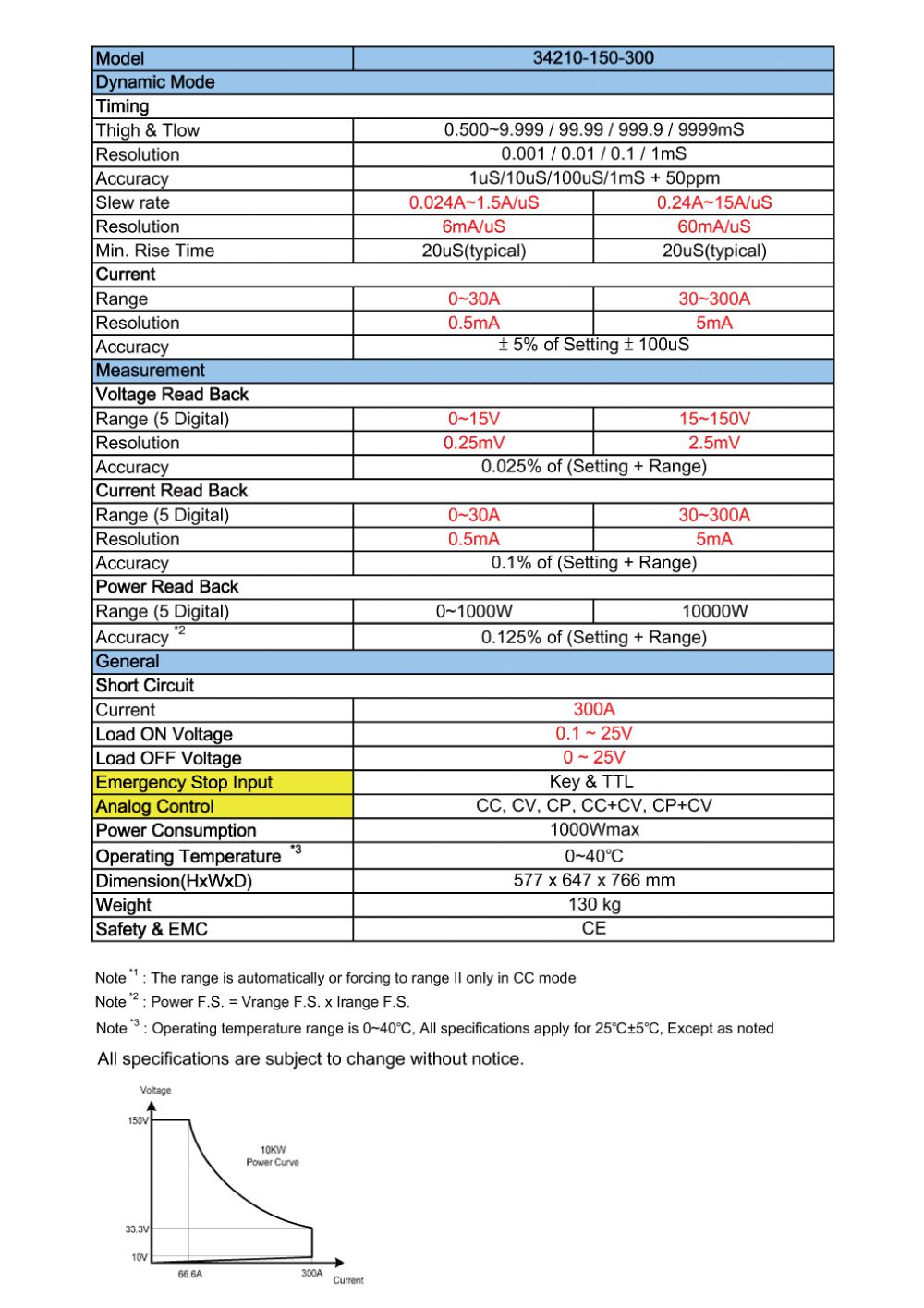

Measurement mode (Load):
Voltage: 0 ~ 15V/15~150V, ±0.025%
Current : 0 ~ 30A/30~300A, ±0.1%
Power : 0 ~ 1000W/10KW, ±0.65%
Short circuit current: 300A
Dimension (HxWxD): 577 x 647 x 766 mm
Weight: 130 kg
Datasheet
