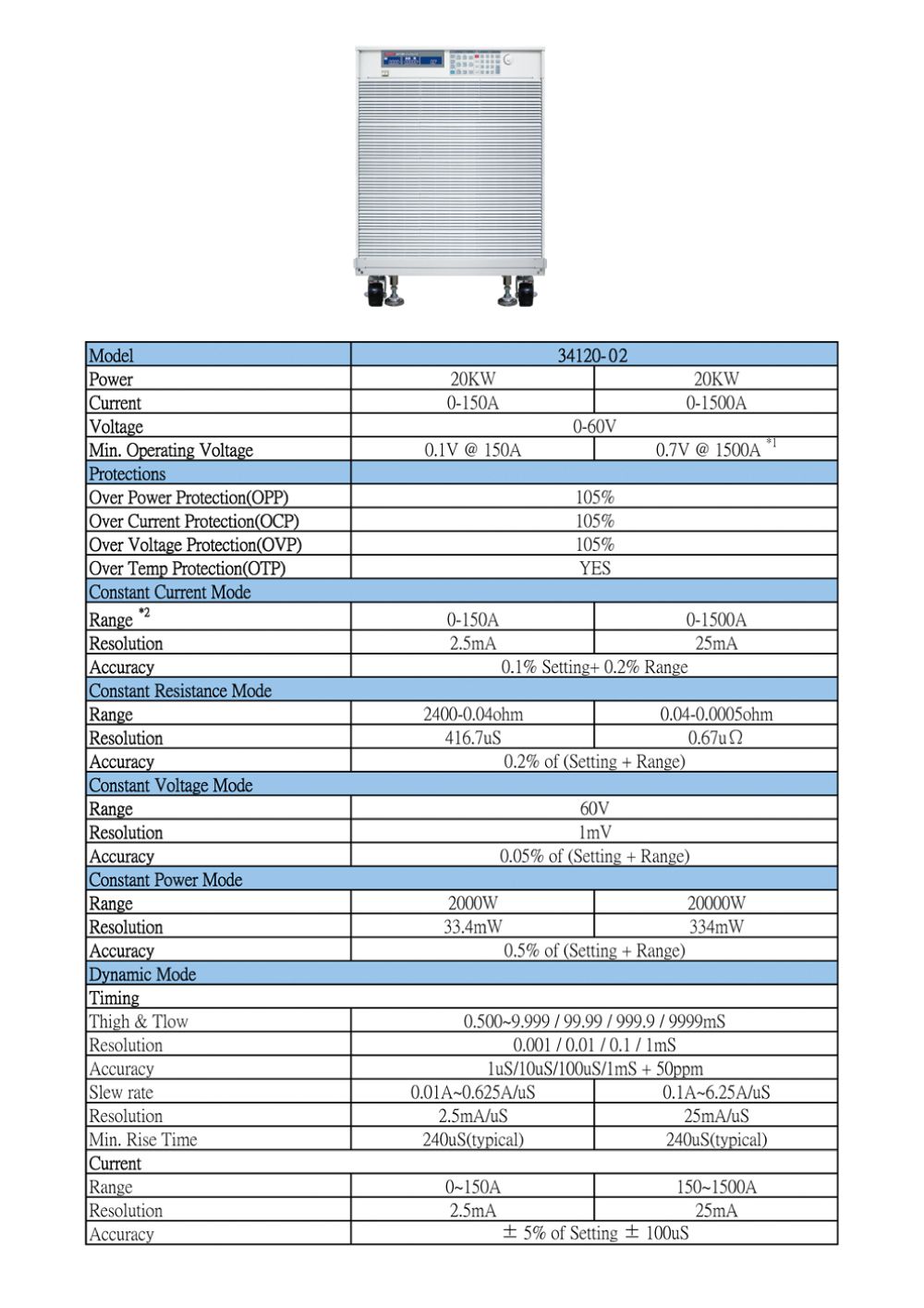

Power: 20KW
Current: 0~150A/0~1500A
Voltage: 0~60V
Min.Operation Voltage: 0.1V at 150A/0.7V at 1500A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~150A/0~1500A
Resolution: 2.5mA/26mA
Accuracy: ±0.1%
CR mode:
Range: 2400-0.04Ω/0.04-0.0005Ω
Resolution: 416.7uS/0.67uΩ
Accuracy: ±0.2%
CV mode:
Range: 60V
Resolution: 1mV
Accuracy: ±0.05%
CP mode:
Range: 2000W/20000W
Resolution: 33.4mA/334mA
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 6V/6~60V, ±0.025%
Current : 0 ~ 150A/150~1500A, ±0.1%
Power : 0 ~ 2000W/20000W, ±0.125%
Short circuit current: 1500A
Dimension (HxWxD): 889 x 647 x 766 mm
Weight: 220 kg
Datasheet
