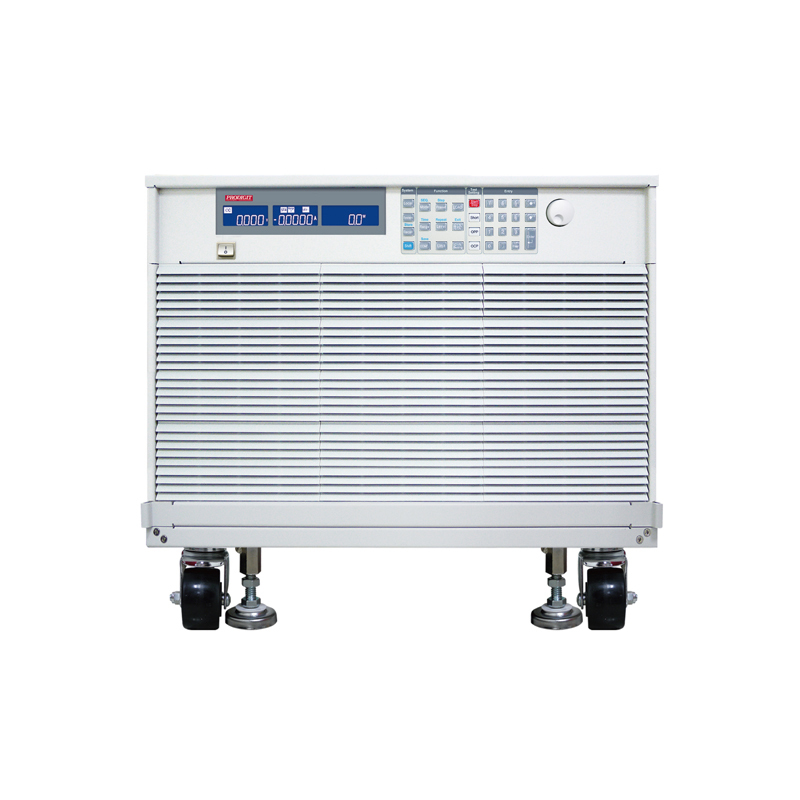

PRODIGIT 34110A-11 High Slew-Rate High Power DC Electronic Load (60V,1500A,10KW)

Power: 10KW

Current: 0~150A/0~1500A

Voltage: 0~60V

Min.Operation Voltage: 0.1V at 150A/0.7V at 1500A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~150A/0~1500A

Resolution: 2.4mA/24mA

Accuracy: ±0.1%

CR mode:

Range: 2400-0.04ohm/0.04-0.0007ohm

Resolution: 555.5uS/0.7uΩ

Accuracy: ±0.2%

CV mode:

Range: 60V

Resolution: 1mV

Accuracy: ±0.05%

CP mode:

Range: 1000W/10000W

Resolution: 16mW/160mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 6V/6~60V, ±0.025%

Current : 0 ~ 150A/150~1500A, ±0.1%

Power : 1500W/15000W, ±0.125%

Short circuit current: 1500A

Dimension (HxWxD): 573 x 647 x 766 mm

Weight: 130 kg

Input: 115/230Vac, 50/60Hz

Optional interface: GPIB, RS232, USB, LAN
