Power: 10KW
Current: 0~3A/0~30A
Voltage: 50~1000V
Min.Operation Voltage: 50V at 30A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~3A/0~30A
Resolution: 0.05mA/0.5mA
Accuracy: 0.1% setting + 0.2% range
CR mode:
Range: 1.668-33.33Ω/33.33-2MΩ
Resolution: 0.556Ω/0.5uS
Accuracy: ±0.2%
CV mode:
Range: 50.1~1000V
Resolution: 16.67mV
Accuracy: ±0.05%
CP mode:
Range: 1000W/10000W
Resolution: 16.7mW /167mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 3A/3~30A, ±0.1%
Power : 0 ~ 1000W/10KW, ±0.65%
Short circuit current: 30A
Dimension (HxWxD): 534 x 448 x 764 mm
Weight: 110 kg

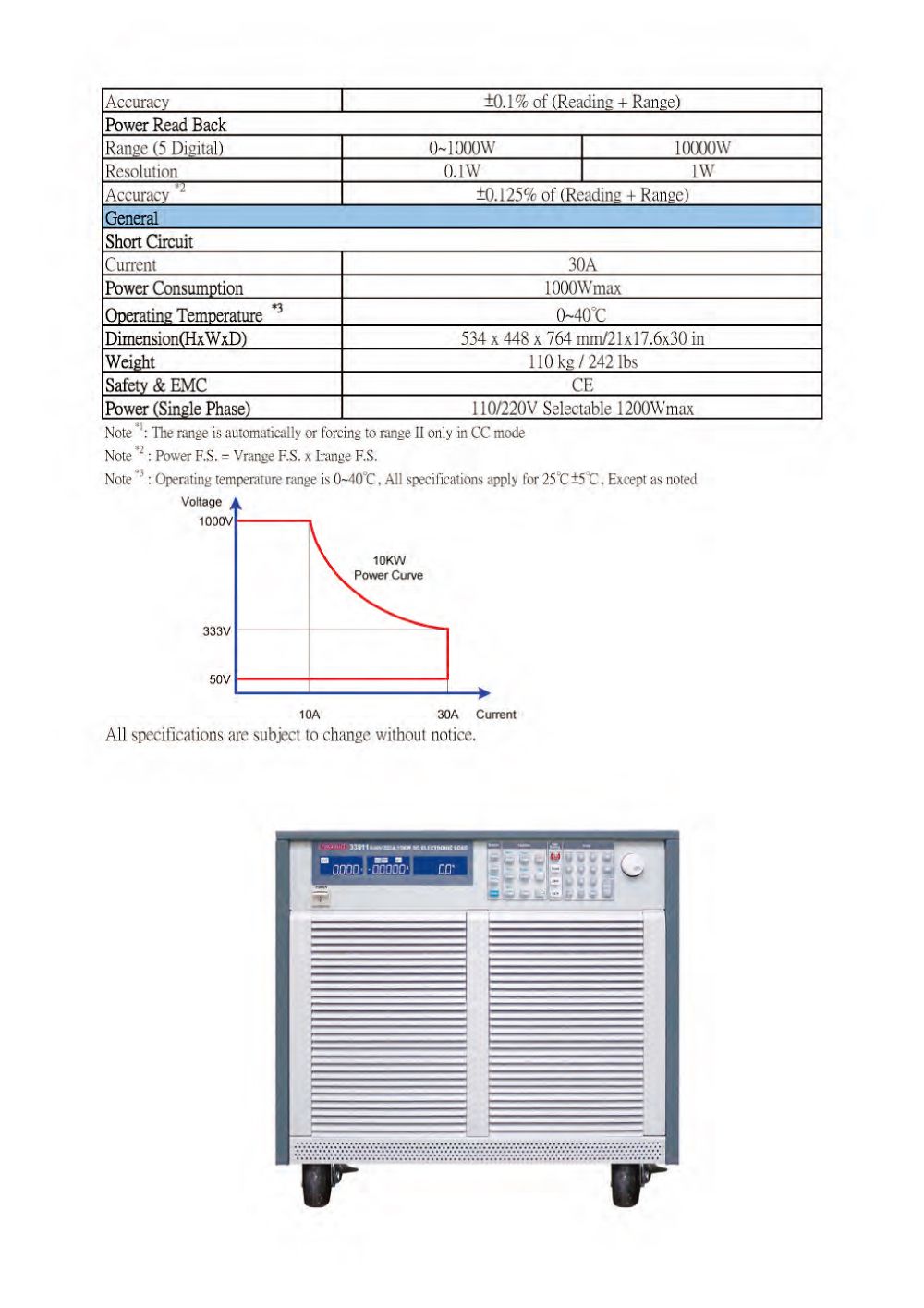

Datasheet
