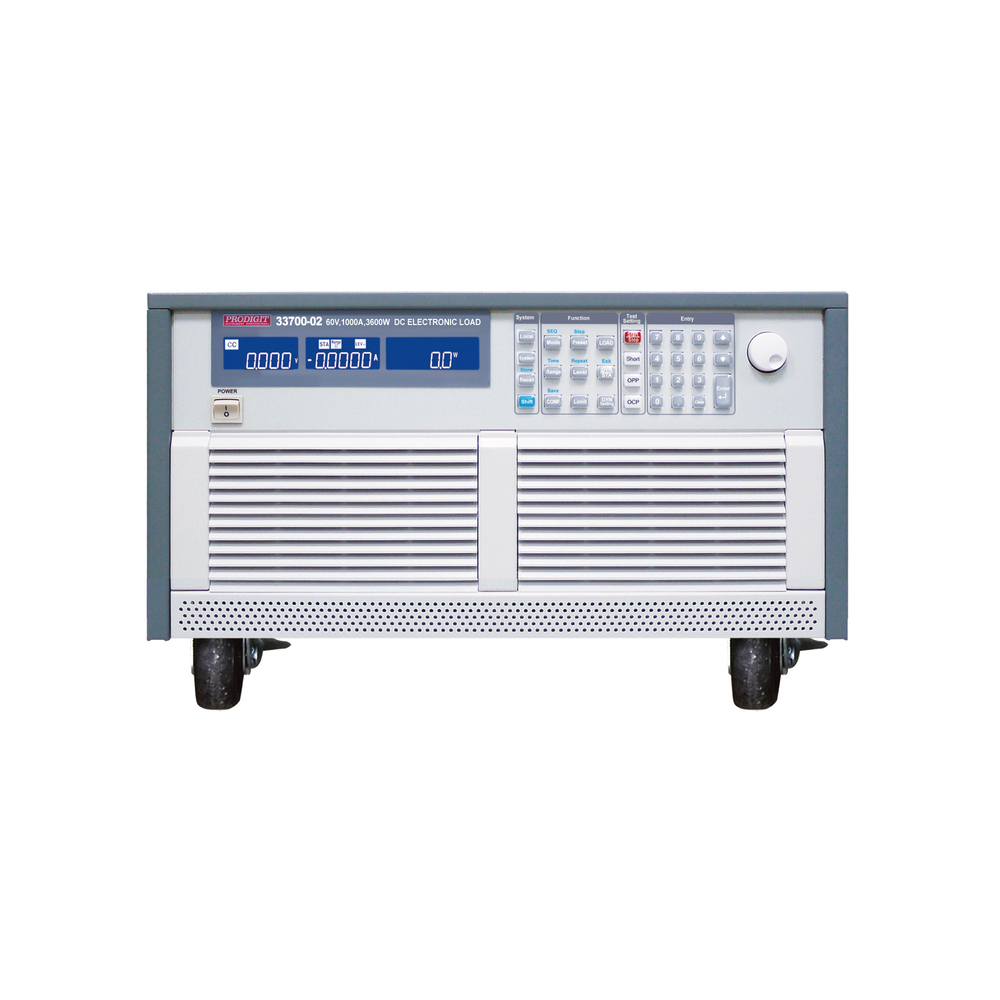

PRODIGIT 33700-02 Compact High Power DC Electronic Load (60V, 1000A, 3600W)

Power: 3600W

Current: 0~100A/0~1000A

Voltage: 0~60V

Min.Operation Voltage: 0.1V at 100A/0.7V at 1000A

Protections:

Over Power Protection (OPP): 1.05%

Over Current Protection (OCP): 1.05%

Over Voltage Protection (OVP): 1.05%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~100A/0~1000A

Resolution: 1.667mA/16.676mA

Accuracy: 0.1% setting + 0.2% range

CR mode:

Range: 0.001-0.06Ω/0.06-3600Ω

Resolution: 0.001Ω/277uS

Accuracy: ±0.2%

CV mode:

Range: 60V

Resolution: 1mV

Accuracy: ±0.05%

CP mode:

Range: 500W/5000W

Resolution: 7.5mW/75mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 6V/6~60V, ±0.025%

Current : 0 ~ 100A/100~1000A, ±0.1%

Power : 0 ~ 500W/3600W, ±0.65%

Short circuit current: 1000A

Dimension (HxWxD): 365 x 540 x 750 mm

Weight: 85 kg

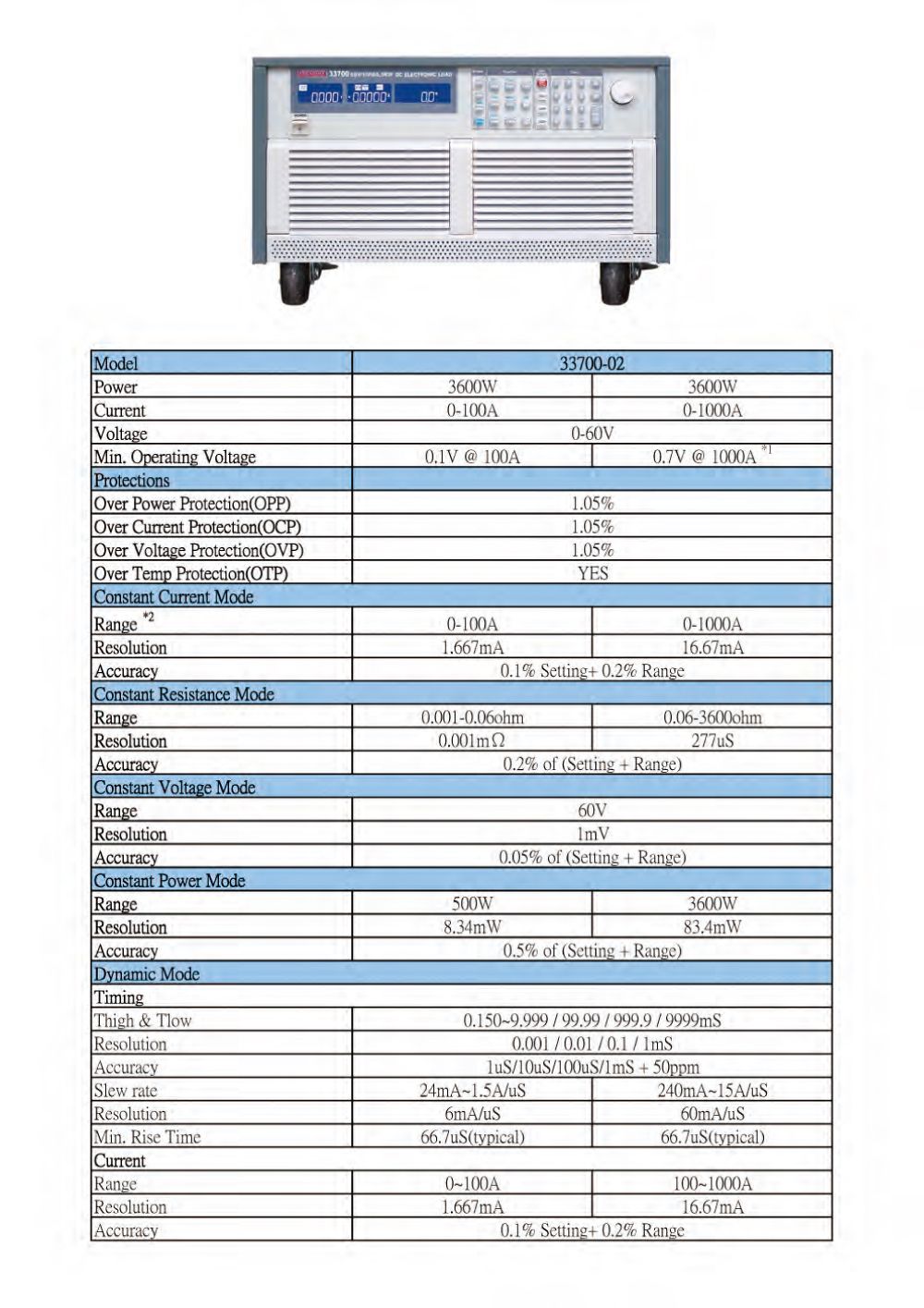

Datasheet
