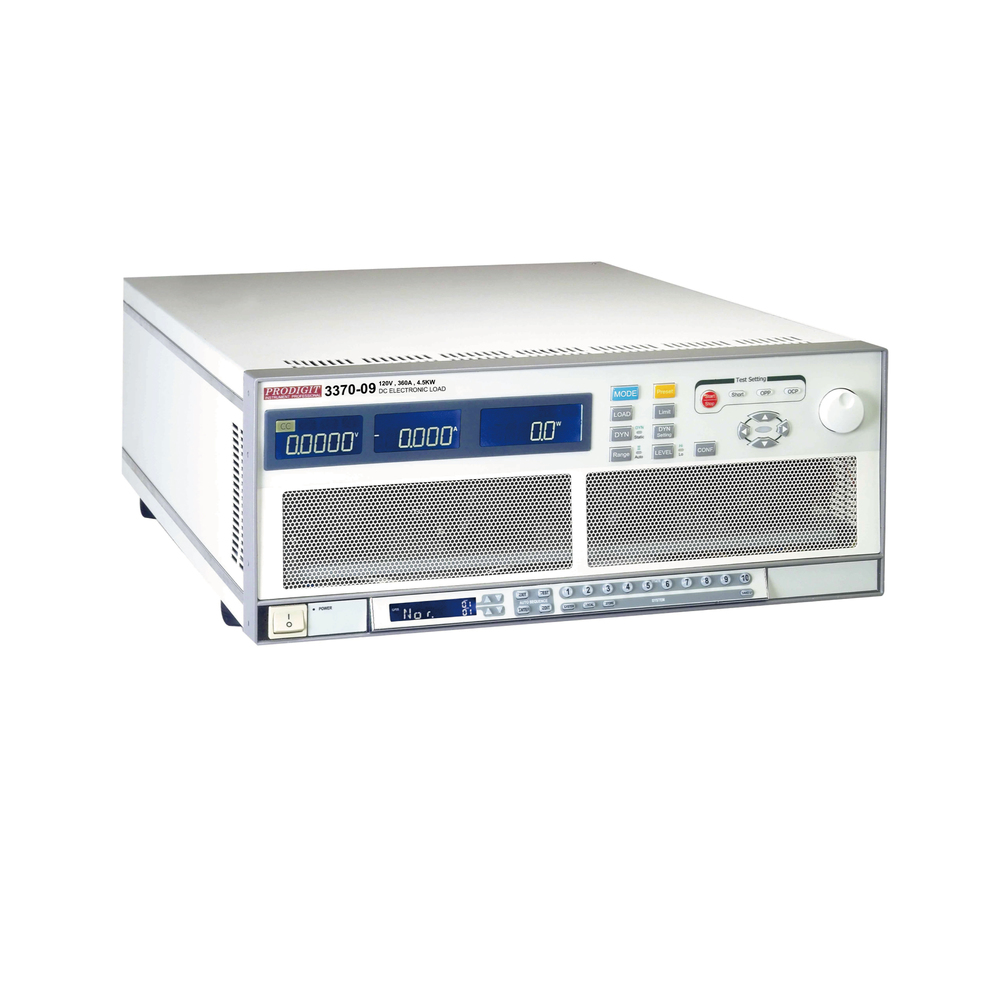

Power: 4.5KW
Current: 0~36A/0~360A
Voltage: 0~120V
Min.Operation Voltage: 0.2V at 360A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~36A/0~360A
Resolution: 0.6mA/6mA
Accuracy: ±0.1%
CR mode:
Range: 0.0055-0.3333Ω/0.3333-20000Ω
Resolution: 0.0083Ω/0.0333mS
Accuracy: ±0.2%
CV mode:
Range: 0~12V/12~120V
Resolution: 0.2mV/2mV
Accuracy: ±0.05%
CP mode:
Range: 450W/4500W
Resolution: 7.5mW/75mW
Accuracy: ±0.05%
Measurement mode (Load):
Voltage: 0 ~ 12V/12~120V, ±0.025%
Current : 0 ~ 36A/36~360A, ±0.1%
Power : 0 ~ 450W/4500W, ±0.125%
Short circuit current: 360A
Dimension (HxWxD): 177 x 440 x 750 mm
Weight: 45 kg
Datasheet
