Power: 3KW
Current: 0~24A/0~240A
Voltage: 0~120V
Min.Operation Voltage: 2V at 240A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~24A/0~240A
Resolution: 0. 4mA/4mA
Accuracy: ±0.1%
CR mode:
Range: 0.0083-0.5Ω/0.5-30000Ω
Resolution: 0.0083Ω/0.0333mS
Accuracy: ±0.2%
CV mode:
Range: 0~12V/12~120V
Resolution: 0.2mV/2mV
Accuracy: ±0.05%
CP mode:
Range: 300W/3000W
Resolution: 5mW/50mW
Accuracy: ±0.05%
Measurement mode (Load):
Voltage: 0 ~ 12V/12~120V, ±0.025%
Current : 0 ~ 24A/24~240A, ±0.1%
Power : 0 ~ 300W/3000W, ±0.125%
Short circuit current: 240A
Dimension (HxWxD): 177 x 440 x 750 mm
Weight: 45 kg

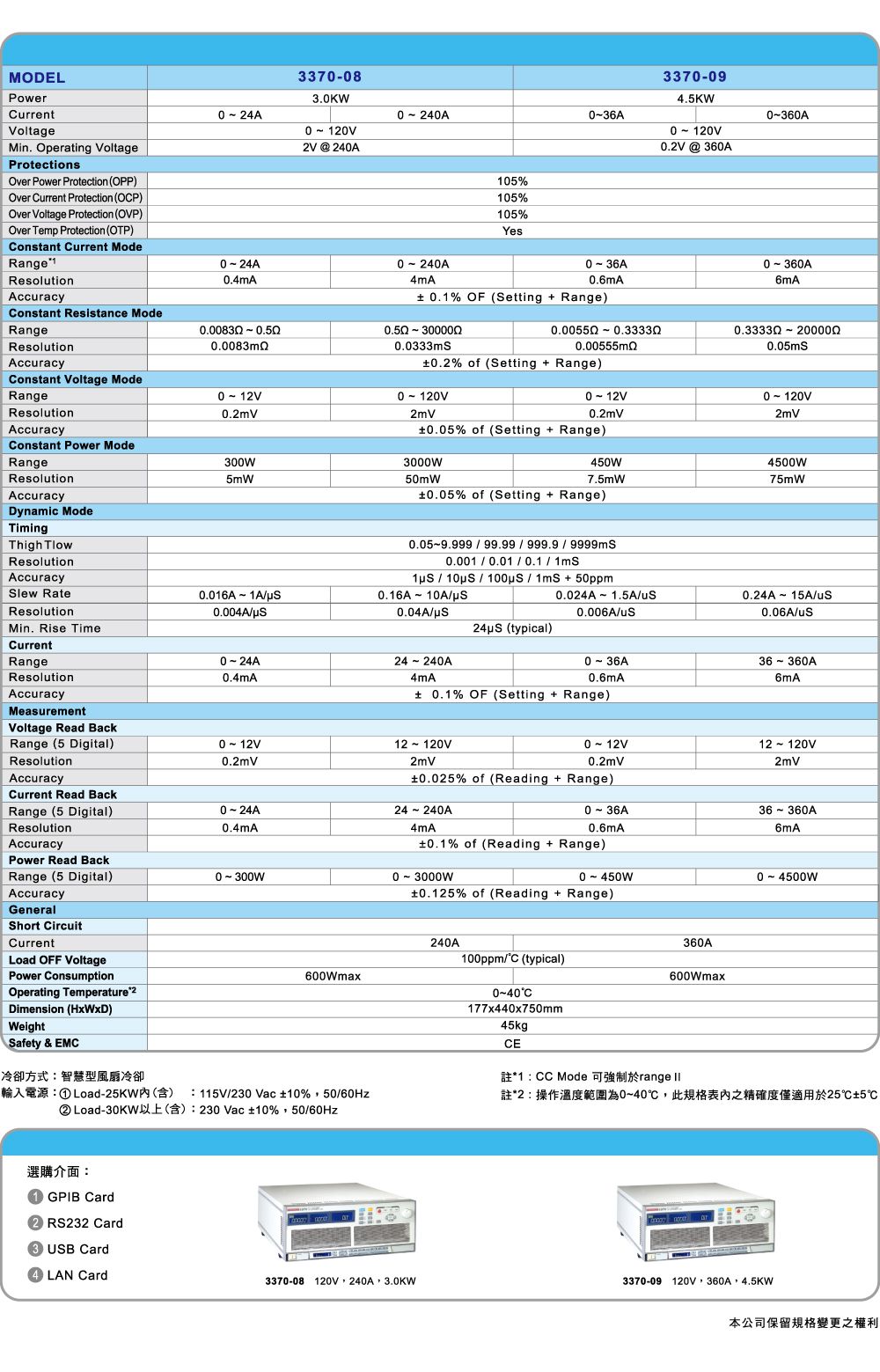

Datasheet
