Power: 2.5KW
Current: 0~8A/0~80A
Voltage: 0~500V
Min.Operation Voltage: 10V at 80A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~8A/0~80A
Resolution: 0.134mA/1.34mA
Accuracy: ±0.1%
CR mode:
Range: 30000-7.5Ω/7.5-0.125Ω
Resolution: 2.2uS/125uΩ
Accuracy: ±0.2%
CV mode:
Range: 500V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 250W/2500W
Resolution: 4.167mW/41.67mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~500V, ±0.025%
Current : 0 ~ 8A/8~80A, ±0.1%
Power : 0 ~ 250W/2500W, ±0.125%
Short circuit current: 80A
Dimension (HxWxD): 177 x 483 x 662 mm,
Weight: 45 kg

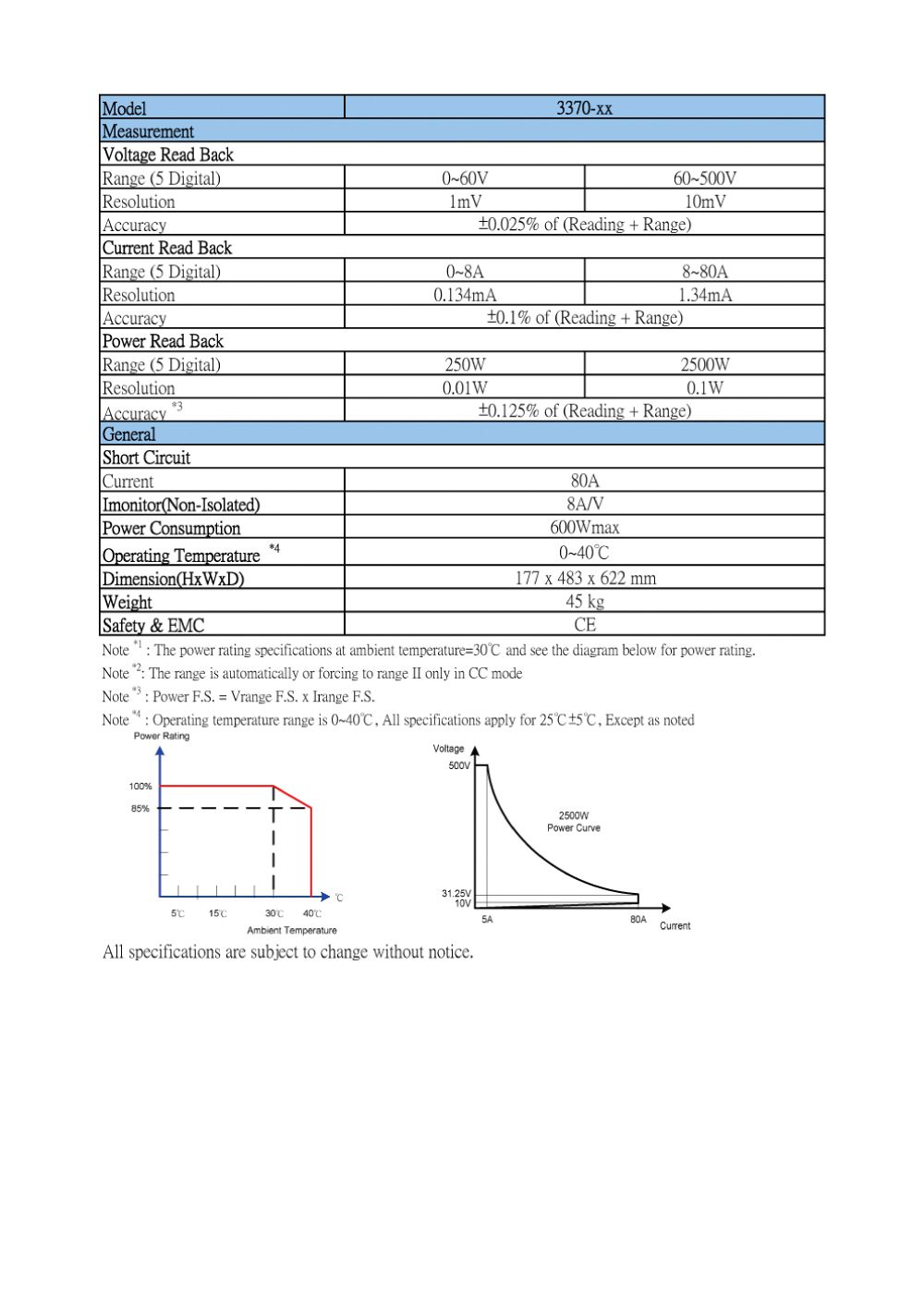

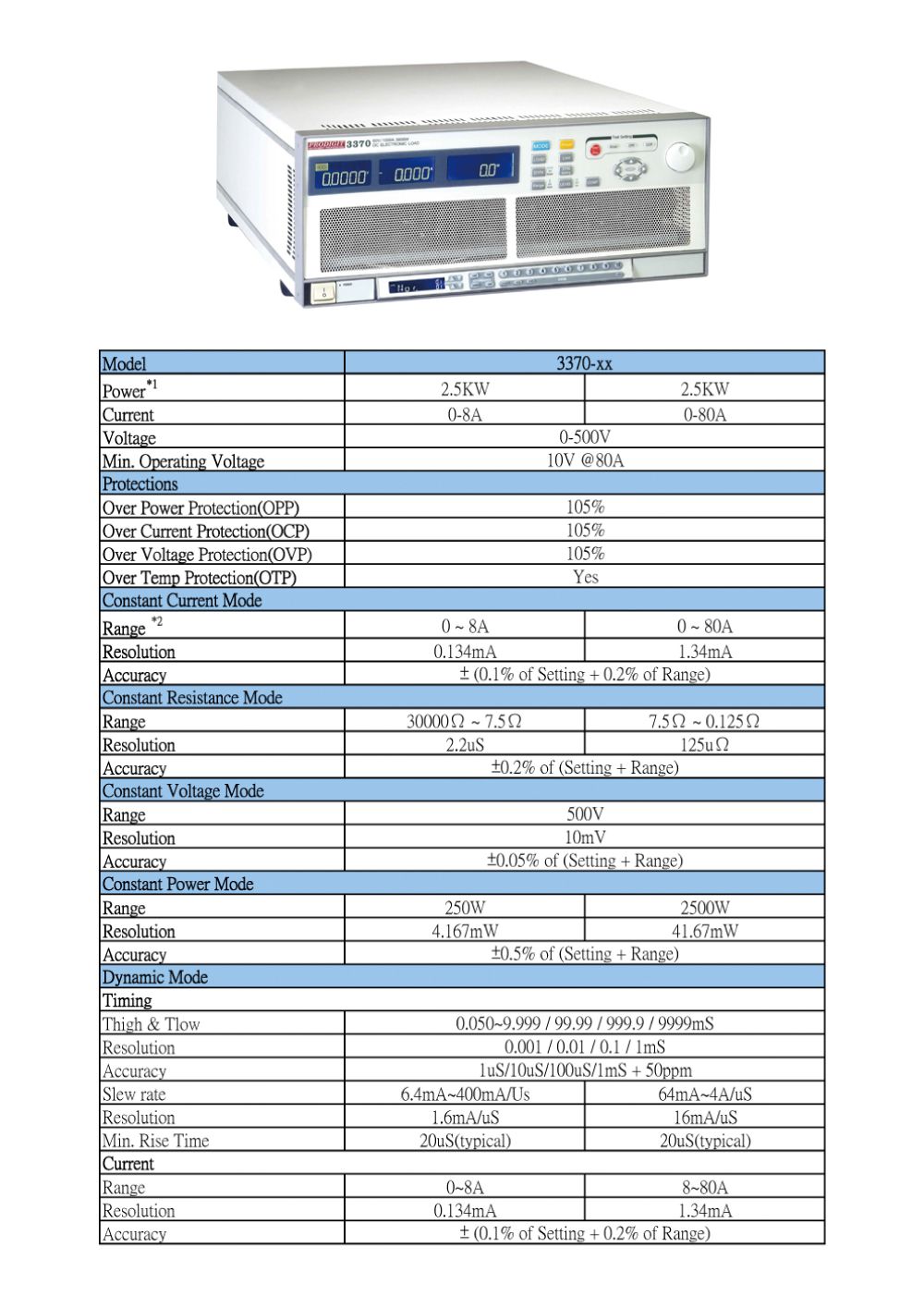

Datasheet
