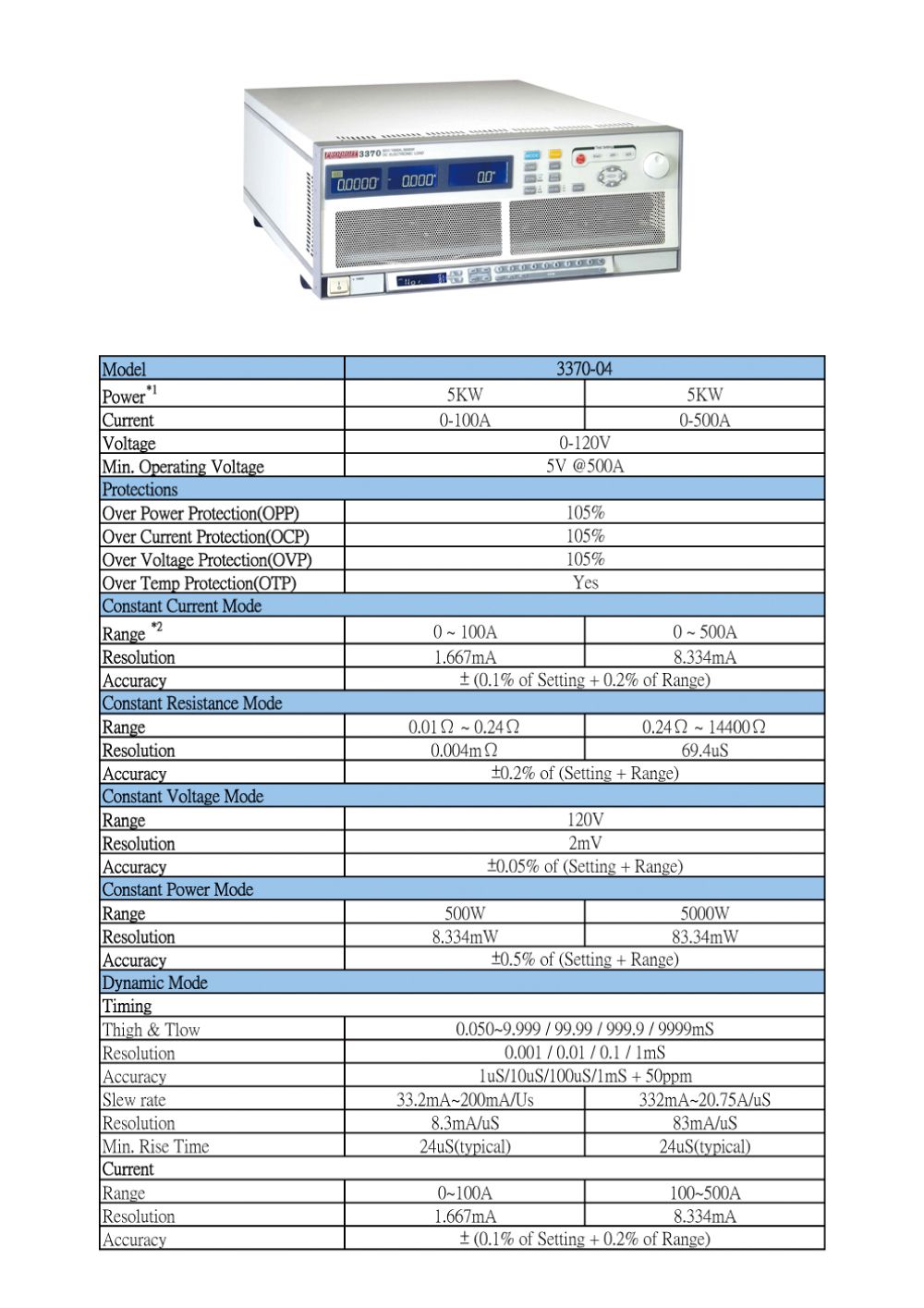

Power: 5KW
Current: 0~100A/0~500A
Voltage: 0~120V
Min.Operation Voltage: 5V at 500A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~100A/0~500A
Resolution: 1.667mA/8.334mA
Accuracy: ±0.1%
CR mode:
Range: 0.01-0.24Ω/0.24-14400Ω
Resolution: 416.7uS/0.67uΩ
Accuracy: ±0.2%
CV mode:
Range: 120V
Resolution: 2mV
Accuracy: ±0.05%
CP mode:
Range: 500W/5000W
Resolution: 8.334mA/83.34mA
Accuracy: ±0.5%

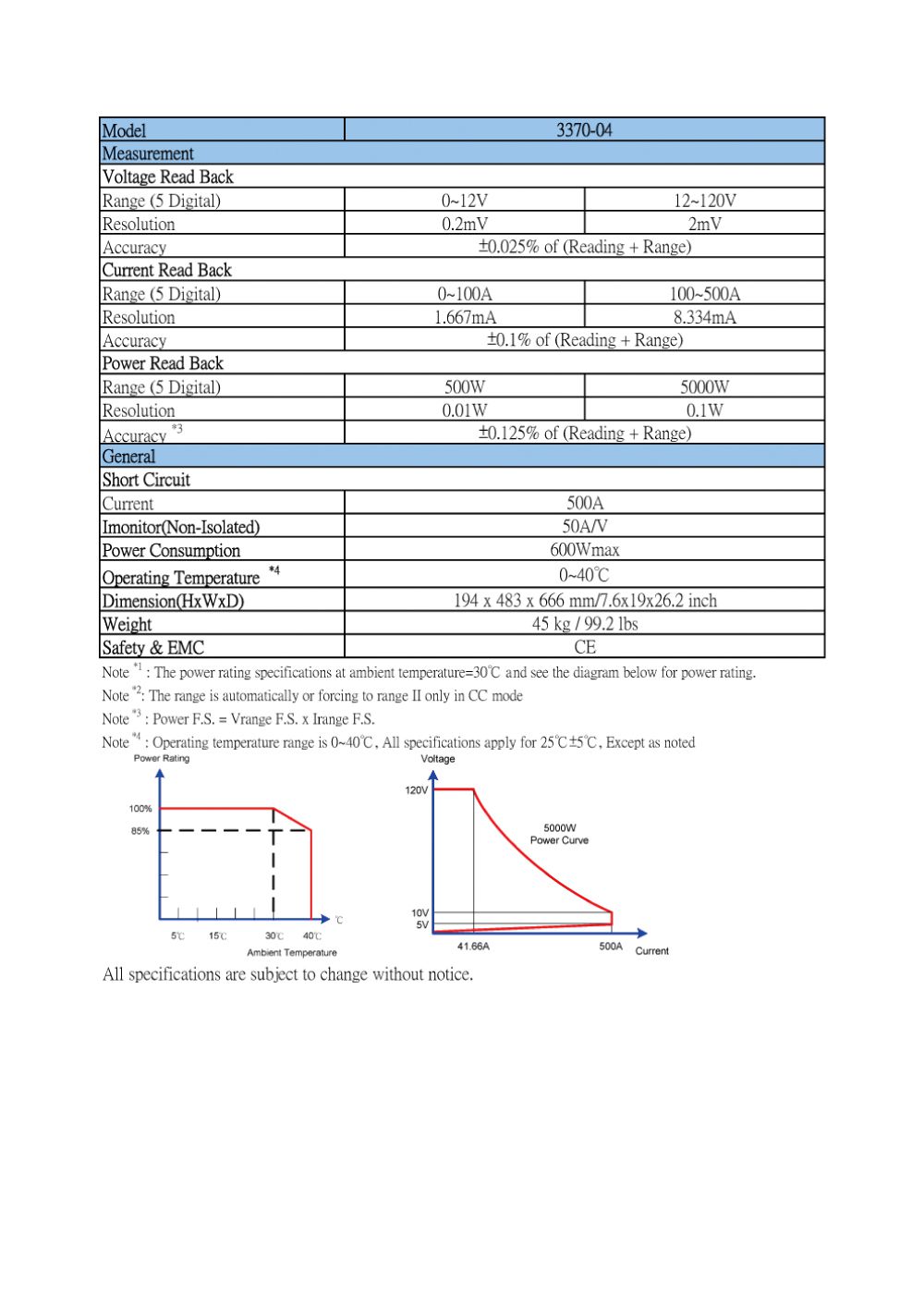

Measurement mode (Load):
Voltage: 0 ~ 12V/12~120V, ±0.025%
Current : 0 ~ 100A/100~500A, ±0.1%
Power : 0 ~ 500W/5000W, ±0.125%
Short circuit current: 500A
Dimension (HxWxD): 194 x 483 x 666 mm
Weight: 45 kg
Datasheet
