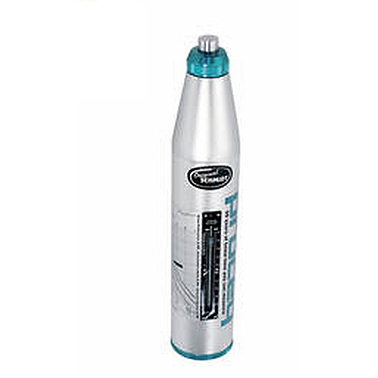

Proceq Original Schmidt L Concrete Rebound Test Hammer (10 - 70 N/mm2, 0.735 Nm)

- Applications
+ The Original Schmidt is used for the non-destructive measurement of the concrete/mortar compressive strength characteristics
+ Control of uniform concrete quality
+ Detection of weak spots in the concrete
+ The type L/LR Original Schmidt operates with significant lower impact energy, making this test hammer the ideal option for testing thin walled items with a thickness between 50 to 100 mm (2 in. and 4 in.) or for analyzing small components.
+ It is suitable for examining cast stone components which are sensitive to impact. In rock mechanics, the type L/LR Original Schmidt is commonly used for the classification of rock cores and brittle rock

- Technical Data
+ Measuring range: 10 - 70 N/mm2
+ Impact energy: 0.735 Nm
+ Paper trip: No

Flyer

Manual
