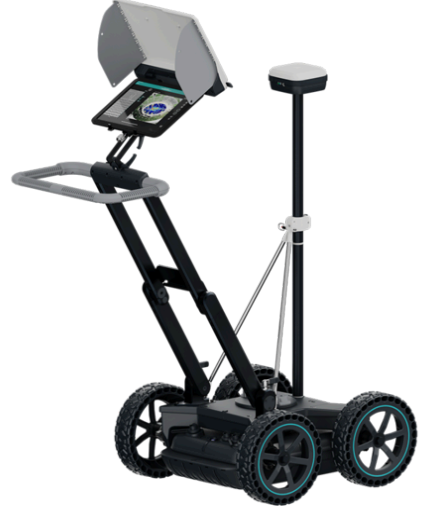

PROCEQ GS8000 Pro Subsurface Mapping GPR

Instrument Tech Specs:

Radar technology: Stepped-frequency Continuous-Wave GPR

Modulated frequency range: 40 – 3440 MHz

Effective bandwidth: 3200 MHz

Min. detectable target size: 1 cm | 0.4 in ²

Max. time window: 200 ns

Scan rate: 500 HzSpatial interval: Up to 100 scans/m

Acquisition speed: Up to 80 Km/h | 50 mph ³

GNSS receiver: Multiband GPS + Glonass + Galileo + Beidou, SSR augmentation / NRTK-compatible ⁴

Dimensions: 145 x 145 x 70 mm

Weight: 0.7 Kg, 4x AA-batteries included

GNSS real-time 3D accuracy: Typ. 1 - 5 cm | 0.5 - 2 in ⁵

GNSS initialization time: Typ. 5 - 30 s

Wheel encoders: 2
Ingress protection (IP) / sealing: IP65

Power supply: Removable flight-safe battery pack ¹⁰, Off-the-shelf power bank ¹¹

Autonomy: 3.5 hours | Full working day ¹²

Operating temperature: -10° to 50°C | 14° to 122° F

Operating humidity: 95% RH, non-condensing

GS8000 Pro includes additionally: off-road wheels and underbody, GNSS pole fixation kit, tablet cover for sun and rain, hard transportation case
