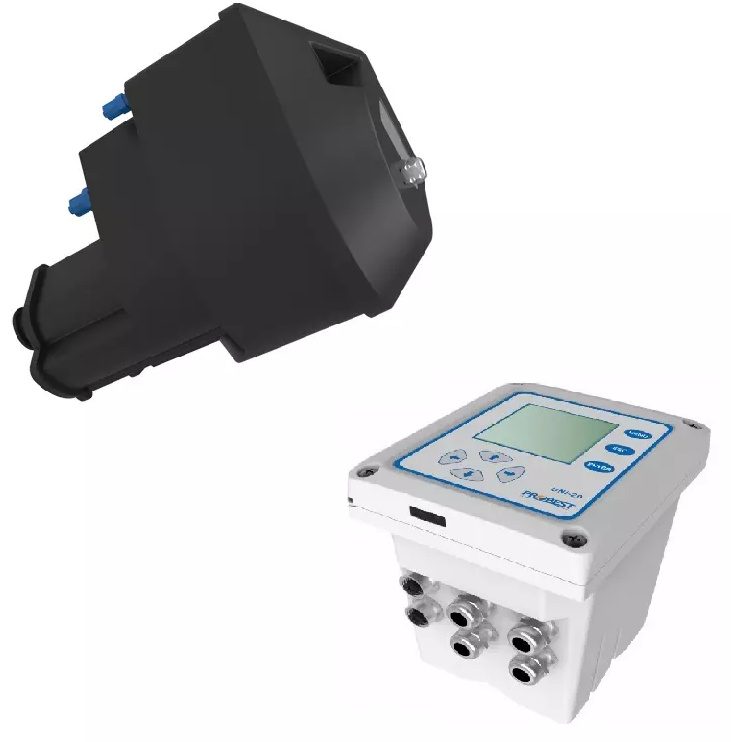

Probest PLTU-700 Low-Range Turbidity Online Analyzer (0.001-100 NTU)

Measurement range 0.001-100 NTU

Measurement Accuracy

±2% of the reading or ±0.015NTU when the range is 0.001-40NTU,the bigger one;

±5% of the reading when the range is 40-100NTU

Resolution: 0.001-0.1NTU,base on range

Repeatability: ±2%

Water flow: 300ml/min≤X≤700ml/min

Calibration: Sample calibration, Slope calibration

Pipe Fitting: Inlet:1/4NPT;Outlet:1/2NPT

Main material: Body:ABS + SUS316L; Seal: Butyl Cyanide Rubber;Cable:PUR

Power supply: AC:85-500VAC; DC:9-36VDC

Output: 3-way 4-20mA

Relay: Three-way relays, programmed parameter & value response.

Communication protocol: MODBUS  RS485

Storage temperature: -15-60℃

Measuring temperature: 0-45℃(Non-freezing)

Dimension: Sensor:304 *207*392.5mm(L*W*H),Transmitter:145*125*162mm(L*W*H)

Weight: Sensor:2.1KG;Transmitter:1.35KG

Protective rate: Sensor:IP65(Indoor);Transmitter:IP66/ NEMA4X

Cable length: Standard: 3m,not recommend to extend.

 Applications

Turbidity online monitoring of filtration of water plant, product Water and direct drinking water system.

Turbidity online monitoring of recirculating cooling water and filter water in all kinds of industrial production and water reuse system.
