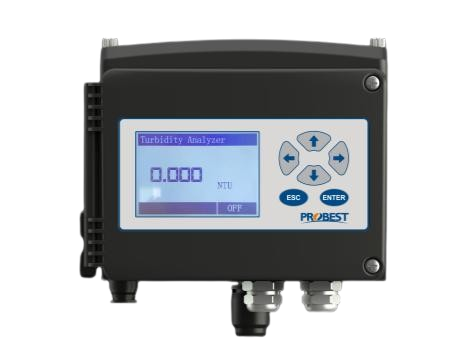

Probest PLTU-600 Low-range Turbidity Analyzer (0.001-100 NTU)

Measuring range: 0.001-100 NTU

Measurement accuracy: 0.001-40 NTU: ±2% or ±0.015 NTU bigger one / 40-100 NTU: ±5%

Repeatability: ≤2%

Resolution: 0.001-0.1NTU,base on different range

Display: 3.5 inch LCD screen

Sample Flow: 200mL/min≤X≤400mL/min

Calibration: Sample calibration, slope calibration

Pipe Fittings

Water inlet: Quick-connect switch to hard pipe φ8

Outlet: Quick-connect to hard tube φ12

Cleaning port: Quick-connect to hard tube φ12

Sensor Main Material: Body:ASA;Cable:PUR

Power: Sensor 9-36VDC / Standard with 220VAC to 12VDC power converter

Relay: 1 way relay

Output: 1 way 4-20mA

Communication: MODBUS RS485

Storage Temp.: -15-60℃

Operating Temperature: 0-45℃(Non-freezing)

Dimension: 158*166.2*155mm(L*W*H)

Weight: 1KG

Protection Rate: IP65(Indoor)

 Applications

Turbidity online monitoring of tap water plant pre-filtration, post-filtration, factory water, direct drinking water system

Turbidity online monitoring of various industrial production circulating cooling water, filtered water, water reuse system, etc.

Online monitoring of turbidity in various industrial production circulating cooling water, filtered water, water reuse system and other links.
