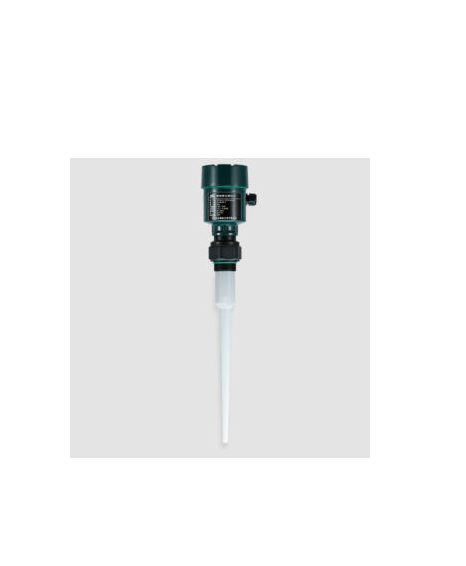

Application: it is mainly used for the level measurement of corrosive liquids and slurries with simple process conditions. (Example: sewage storage tanks, acid-base storage tanks, slurry storage tanks).
Maximum range: 20m
Process temperature: (-40~120)℃
Process pressure: (-0.1~0.3) Mpa
Accuracy: ±8mm
Repeatability: ±2mm
Process connection: thread, flange
Operating frequency: 6.8GHz
Signal output: (4~20)mA/HART protocol/ 24V DC two-wire/four-wire;/ (4~20)mA/HART protocol/ 220V AC four-wire system.
Explosion-proof grade: Exia IIC T6 Ga
Protection class: plastic IP66/aluminum IP67
