Specification / LIMIT
DC input voltage: DC13.4V / 10.5V~16.0V
Output power continuous: 2KW/220V / 220V±3%
Surge rating (power): 4KW / ±10%
Efficiency(output): normal 89%/max 87% / ±3%
No load current:
- no fan: 1.50A / ±0.3A
- on fan: 2.07A / ±0.5A
THD (max): 1000W 1.1% / Max 2.0%
Low battery shut down/return: 10.0V/11.4V / ±1.0V
High battery shut down-return: 17.0V/15.4V / ±1.0V
Frequency selection: 50Hz/60Hz selection / ±0.5Hz
Output power & voltage regulation: 2KW/220V / ±5％
Over temperature protection/power on: -35℃~75℃/58℃ / ±6℃/±5℃
Auto cooling Pan Operating / Stopping Temperature: 40℃ / ±5℃

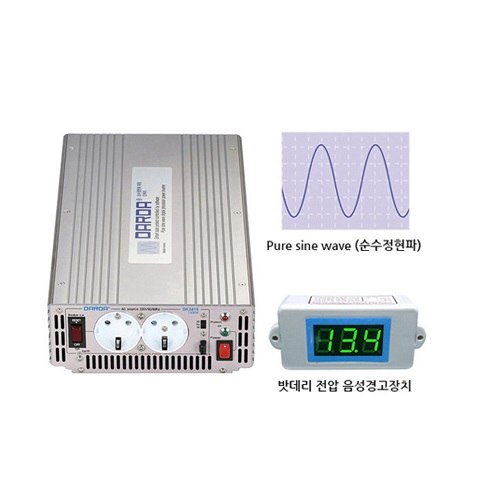

Output wave form: pure sine wave (D.S.P)
Insulation transformer tester(withstand voltage): 2KV~2.5KV(±0.5KV)
Overload protection:
- Input fuse: 80A(2EA) / Car fuse
- Output sensor: Output auto surge blocking/short protect
- Output breaker(reset) switch: 9A or 10A / SS-001
- AC outlet: 2P-16A / Output socket terminal
LED display battery voltage unit: Battery12V low tension 0.6V~9.8V high tension17V~18V Voice waming start 5 minutes and repeats 4 times / ±3~5℃
Dimensions [W×H×D] (mm): 185×72×440
Weight (Kg): 4.5Kg

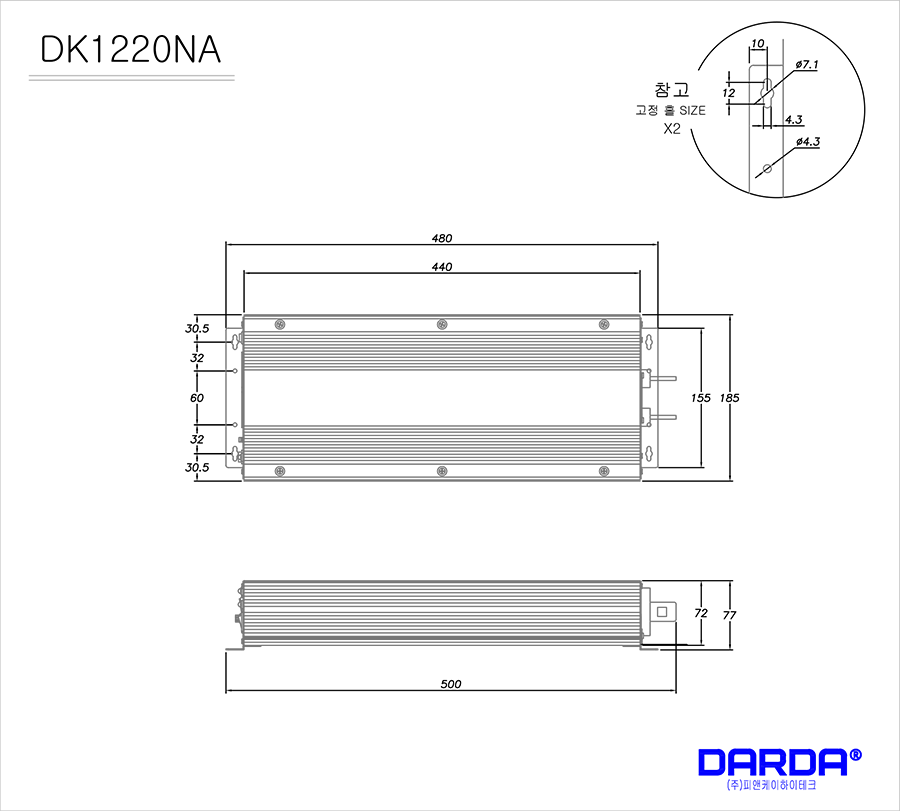

Dimensions
