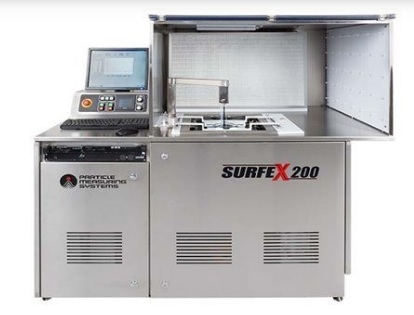

PMS Surfex Parts Cleanliness Testing Station

Surfex Base Unit
- Ultrasonic generator: 40 kHz ultrasonic generator, 500 W
Optional: Multi-frequency generator, customer-defined single frequency
- Ultrasonic tank: 10” electropolished 316 stainless steel tank, w/ single-sided overflow; other options available
- Fluidics: Teflon® plumbing
- Filtration: Varies, depending on particle counter sensitivity
- Construction: Stainless steel enclosure
- Dimensions (l,w,h): 60 x 33 x 60 in (152 x 84 x 152 cm). (Note: Options will impact final product dimensions.)
- Weight: 750 lb nominal (341 kg). (Note: Options will impact final product weight.)
- Communications: RS-232. Data may also be stored to network location via Ethernet connectivity or USB
- Environment: Temperature: 50 – 85 °F (10 – 30 °C); Humidity: Non-Condensing; ISO Class 5 or better
- Size range
+ LiQuilaz: E15: 1.5 – 125.0 μm; E20: 2.0 – 125.0 μm; S02: 0.2 – 2.0 μm; S03: 0.3 – 3.0 μm; S05: 0.5 – 20.0 μm
+ UltraChem 100: 0.1 – 0.5 μm
- Size channels
+ LiQuilaz: 15 (user selectable)
+ UltraChem 100: 4
- Calibration: Materials used are traceable to National Institute of Standards and Technology (NIST) and/or Japanese Industrial Standards (JIS)
System Requirements
- Power: 85 – 264 V, 50 – 60 Hz
- Water: 20 LPM of ultra pure water
- Drain: House drain capable of 40 LPM
- House air (clean, dry, oil free): 60 – 80 psi
- Control and display system: Rackmount PC and flat panel display
- Software: Surfex software from Particle Measuring Systems, Inc
