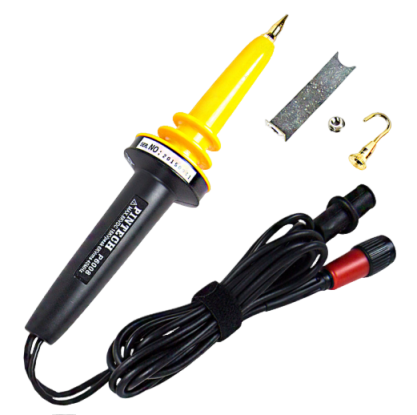

Attenuation Ratio: 1000:1
Impedance: 100MΩ±5%
Input Capacitor: 3.0pF±0.5pF
Adjustable capacitance range: 5pF-50pF
DC+ACpeak: 8kV
AC RMS:≦6kV
The pulse voltage: 16kVp-p
Max loading current: _
Bandwidth(-3dB): DC-40MHz(-3dB)
Rise Time: 9ns
Noise: DC>60dB(1kHz); >50dB(1MHz)
Accuracy:
DCV ±2%(DC to 5kV)； ±3%(5kV-8kV)
ACV ±3%(1kHz/1kV)； -3dB 0-40MHz
Operation Temperature: 0～50℃
Operation Humidity: ≤85%RH
Size(mm): Φ47x215
Weight: 180g
