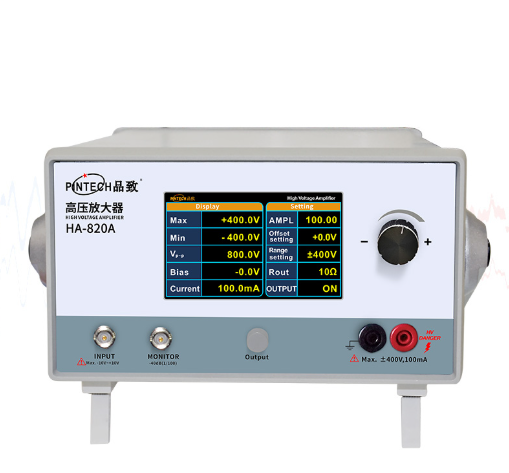

Pintech HA-820A Digital High Voltage Amplifier (400kHz, 800Vp-p)

Output Voltage( DC Max): 400V DC

Output Voltage(AC Max): 800Vp-p

DC Current(Max): 100mA

AC Current(Max): 200mAp-p

Output Power(Max): 40VA

Bandwidth: DC-400kHz(-3dB)

Slew Rate: 500V/μs

Output impedance: 10Ω

Protect resistor: 5kΩ/40watt

Safe Loading: ≧4kΩ/400V; 2.5kΩ/250V

Input Voltage upper limit: -5V~+5V(Max -10V~+10V)

AMPL: 100

OFFEST: ± 250V/ ± 400V

Monitor: 100:1

Output protection:

1. FUSE for output

2. Protection SW (switch)

3. OUTPUT short circuit, overload, overcurrent, overvoltage protection.

4. INPUT/OUTPUT input overvoltage protection

5. Over-temperature protection.
