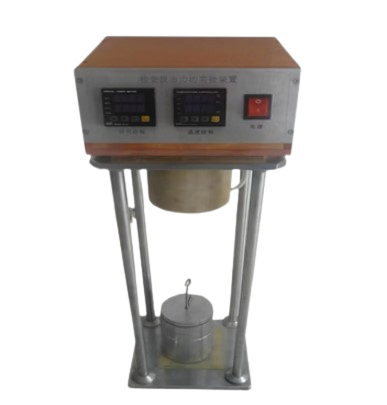

PEGO PG-WDFA2 Apparatus for Checking the Withdrawal Force of Appliance Couplers (45N*1 5N*1 4N*1, 6N*1)

Multi-pin gauge (for maximum withdrawal force test): As per the standard sheet of connector/appliance outlet

Single pin gauge (for minimum withdrawal force test): As per the standard sheet of connector/appliance outlet

Heating temperature: R.T.~180℃ (pre-settable)

Mass configuration (maximum withdrawal force): 45N*1 5N*1 4N*1, 6N*1

Mass configuration (minimum withdrawal force): 1.5N*1, 2N*1

Working power: AC220V±10%/50-60Hz

Working condition: Temperature: 5-35℃, R.H.: 30%~90%

Dimension and weight: W400mm*D300mm*H800mmm/40KG

The appliance couplers withdrawal force testing equipment is designed according to IEC60320-1 figure 3 and figure 4 and clause 16 for verification of the maximum withdrawal force of appliance inlet/plug connector, the minimum withdrawal force is verified by inserting the test pin gauge to each individal connector/appliance. The equipment consists of control cabinet, mounting plate, heating device, appliance inlets/plug connector, mass hook, supplementary mass and principal mass. The height of the frame of the device is 550mm, and the distance between the axes of the two columns is 150mm. The appliance inlet / plug connect made of hardened steel with roughness not exceeding 0.8mm.
