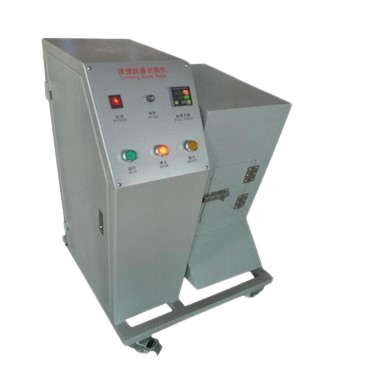

PEGO PG-TB17 Tumbling Barrel (6rpm to 7rpm)

Control way: Button control+meter

Roll speed: 6rpm to 7rpm

Falling height: 1975mm

Test station: 1

Structure: Equip with rubber bevel

Materials (on both bottom): 3mm steel plate+ wooden support >19mm

Number of tests: 0-999999 (settable)

Range of roll speed: 1-60 rpm (settable)

Power supply: 220V/50Hz

Dimension: 1000*1300*2200mm (L*W*H)

The tumbling barrel is designed according to IEC60335-2-17 clause 21.107 and Figure 107. It’s used for the mechanical strength test of supply cords of pads. Cut off the pad’s supply cords at a distance of 100mm from the flexible part and put it into the tumbling barrel, the barrel is turned at a rate of 6rpm to 7 rpm for 500 revolutions, the specimen falls onto the steel plate twice in each revolution.
