Input voltage: AC220V±10%
Output voltage: AC0~99.9KV
Voltage rising speed: 0.5KV/s±10%, 2KV/s±10%, 3KV/s±10%, 5KV/s±10%
Accuracy: Class 3
Continuous test times: 1~9 times
Standing time: 0~9m59s
Memory: 100 groups
Voltage limit setting: 20KV~90KV
Arc time:≤20ms
Standard: 1) Manual test 2) IEC156/IS6792/BS5874 test 3) User Customization 4) ASTMD1816 5) ASTMD877 6) ASTMD1816 7) 5 minutes fast test 8) dielectric voltage test
Temperature required: 5~50℃
Humidity:≤ 90%RH
Volume: 420mm*380mm*410mm
Weight: 28kg

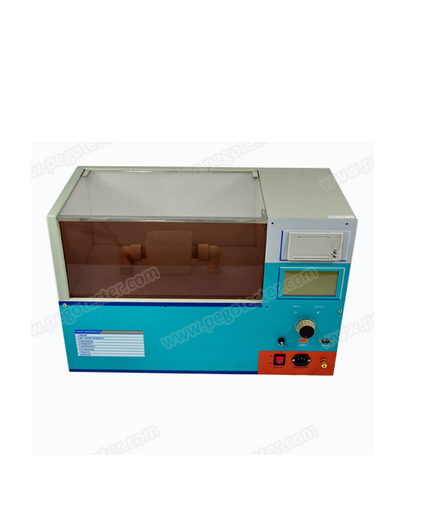

PG-502 insulating oil tester is developed according to the standards of IEC60156, ASTMD1816, ASTMD877, BS5874 and etc. The user can operate the equipment by mouse. Built-in EEPROM memory which can save 100 groups of data, and can freely to print the test result directly, the equipment has the features of simple operation, powerful function and Reliabilty.
