Control system: Time replay+IPX5/6 change-over switch
Outer size (mm): 300*800*1300 (L*W*H)
Aperture diameter of IPX5 nozzle: 6.3mm
Aperture diameter of IPX6 nozzle: 12.5mm
Delivery rate for IPX5 (L/min): 12.5±0.625
Delivery rate for IPX6 (L/min): 100±5
Water pressure (Mpa): As per the standard requirement
Flowmeter control: Manual control
Distance from specimen: 2.5~3m (manual control)
Nozzle fixed way: Hand-held
Material: SUS304 stainless steel
Protection: Electric leakage, hydropenia, short circuit
Working power: 380V/50Hz, 3KW
Power for EUT: 220V/50Hz
Working condition: 5~35℃, ≤85%, 86kPa～106kPa
Water source
1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.
2. The faucet is not more than 2 meters away from the equipment
IPX5/6 strong jet water simplified test device is designed according to IEC60529 clause 14.2.5 and 14.2.6. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.

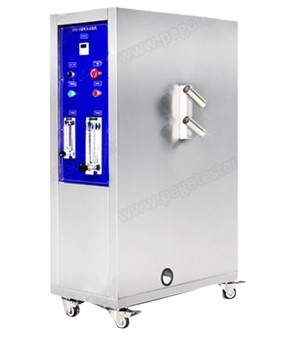

The simplified test device is consisted by control units, Φ6.3mm and Φ12.5mm jet hose nozzles, the equipment is equipped with 4 casters so that it can be moved at will.
