PCE WL 2 Air Velocity Meter
Specifications
Inputs:2 x digital inputs; 1 x analogue input; 1 x NTC input for external temperature sensors
Interface:RS-232
Sampling interval:1 min or 10 min
Memory:microSD card (FAT32), max. 2 GB
Data format:CSV file, ASCII format
Recorded parameters:average values, min/max values and standard deviations (with date and time stamp)
Power supply:2 x 1.5 V type C batteries
Battey life:up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval)
Housing:robust plastic housing
Protection class:IP65
Dimensions:160 x 80 x 55 mm
Weight:450 g
| Wind energy sensor Wind energy- velocity sensor | |
| Measuring range | 1 ... 40 m/s |
| Sensor | 2 reed contacts (zero potential) |
| Output | impulses zero potential |
| Resolution | 2.3 Hz/ms-1 |
| Maximum applied load | 10 VA, 0.5 A, 42 VDC |
| Wind energy wind direction sensor | |
| Measuring range | 2.5 ... 357.5 º |
| Sensor | 0 ... 1 KΩ |
| Neutral position | 5 º open to north |
Delivery contents

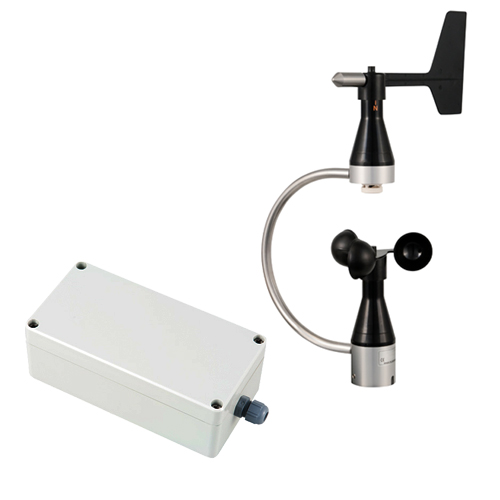

1 x PCE-WL 2 Air Velocity Meter
1 x wind speed sensor
1 x wind direction sensor
1 x 512 MB SD memory card
2 x battery
1 x user manual
