Specifications
Storage unit
Inputs: 2 x digital inputs; 1 x analogue input; 1 x NTC input for external temperature sensors
Interface: RS-232
Sampling interval: 1 min or 10 min
Memory: microSD card (FAT32), max. 2 GB
Data format: CSV file, ASCII format
Recorded parameters: average values, min/max values and standard deviations (with date and time stamp)
Power supply: 2 x 1.5 V type C batteries
Battery life: up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval)
Housing: robust plastic housing
Protection class: IP65
Dimensions: 160 x 80 x 55 mm
Weight: 450 g
Wind sensor
Output: 0 ... 100 Hz at 40 m/s
Measuring range: 0.8 ... 40 m/s
Accuracy: ± 0.5 m/s or ± 5 % of measurement value
Max. load: max. 60 m/s (short-term)
Contact classification: 10 VA, max. 42 V DC, max. 0.4 A
Mounting: with support bracket
Heating: max. 24 V DC/AC, max. 1 A
Environmental temperature: -25 ... +60 °C (ice-free)
Cable: 3 m; LiYY 4 x 0.5 mm²
Protection class: IP54
Dimensions: Ø134 x 160 mm
Weight: ca. 300 g

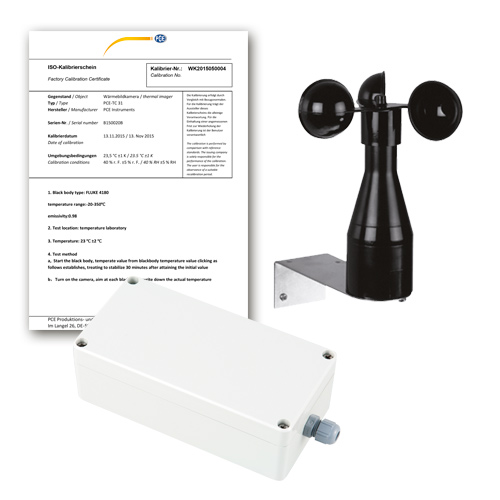

Delivery contents
1 x Air Velocity Meter PCE-WL 1
1 x wind sensor
1 x 512 MB microSD card
1 x mounting bracket
2 x 1.5 V type C batteries
1 x instruction manual
1 x ISO Calibration Certificate
