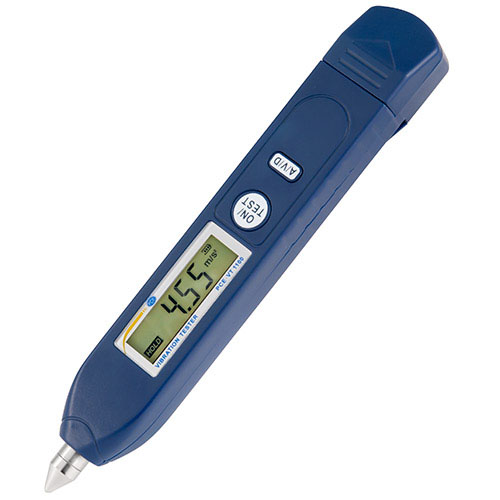

PCE VT 1100 Accelerometer

Specification

Range of Acceleration:0.01 m/s² ... 199.9 m/s² peak

Range of Measurement speed:0.01 mm/s ... 199.9 mm/s rms; 4 x 10-4 in/s ... 7.9 in/s

Range of Measurement displacement:0.001 mm ... 1.999 mm p-p; 4 x 10-5 in ... 0.08 in

Accuracy:±5%, ±2 Digits (20 Hz ... 1 KHz); ±10%, ±2 Digits (10 Hz ... 20 Hz)

Frequency Range - Acceleration:10 Hz ... 1 kHz

Frequency Range - Speed10 Hz: ... 1 kHz

Frequency Range - Displacement:10 Hz ... 500 Hz

Display:3.5 positions LCD display that shows the last measurement value

Power supply:CR2032 Lithium Battery 3V

Auto Shut-off:Automatically disconnects after 2 minutes without activity

Operational Temperature Range:0 ... 40°C / 32 ... 104°F; < 85% H. r.

Dimensions:150 mm x 22 mm x 15 mm /5.9 in x 0.8 in x 0.6 in

Weight:0.055 kg / < 1 lb

Dilivery Contents

1 x PCE-VT 1100

1 x Carrying case

2 x Batteries

1 x User’s manual
