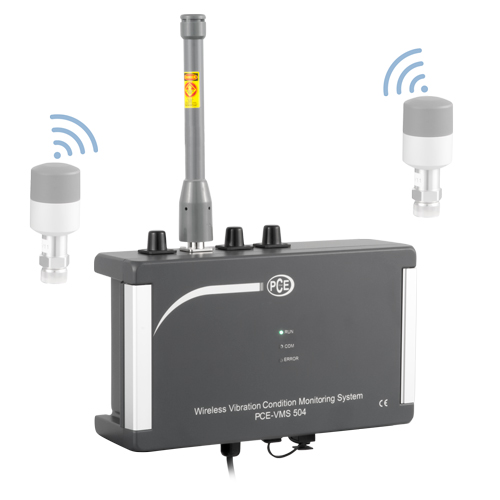

PCE VMS 504 Condition Monitoring Wireless Vibration Monitor

Specifications

Communication type:ZigBee (with PCE-VMS 501)

ethernet, glass fibre cable, wireless (with server)

Frequency band:2.4 GHz

Interfaces:Ethernet 2.0 IEEE802.3, TCP/IP, 10/100baseT

Data storage capacity:128 MB

Power supply:220 VAC/110 VAC or POE

Operating temperature:-20 °C ... +50 °C ; -4 °F ... 122 °F

Dimensions:250 mm x 210 mm x 100 mm ; 9.8 in x 8.3 in x 3.9 in

Weight:2400 g / 5.3 lbs

Technical Specifications about dispatcher

Dispatch rangemax. 100 m / 328 ft in industrial environment:

(130 m / 426.5 ft in free field)

Acceleration range:up to 300 m/s²

Frequency range:5 Hz ... 10 kHz

Resonance frequency:16 kHz

Linearity:1 %

Sensitivity for parameters that are not relevant for measurement≤5 %

Electric insulation:<108 Ω

Load limit:1000 g / 2.2 lbs

Measuring parameters:Acceleration, speed, temperature, offset

Dispatch interval:min. 1 minute per sensor

1 sensor at 1 box = 1 minute

3 sensors at one box= 3 minutes

A/D conversion:24 Bit

Measurable range for wave formmax. 512 kB

Frequency lines:800, 1600, 3200, 6400

Measurement range for temperature:-20 ... +120 °C

-4 °F ... 248 °F

Screw thread:6 mm

Material of enclosure:Bottom 316 L stainless steel,

top aluminum alloy

Power supply:1 x 3,6 V lithium battery (ER 34335)

Battery lifetime:1 year, depending on transfer interval

Dimensions:height: 80 mm / 3.1 in

diameter: 40 mm / 1.6 in

Weight:217 g / 0.5 lbs

Protection class:IP 65

Operation temperature:-30 °C ... +70 °C / 86 °F ... 158 °F

(Surface temperature up to 125 °C / 257 °F)

Dilivery Contents

1 x Wireless Vibration Meter PCE-VMS 504 receiver base

1 x Monitoring-Software

1 x Adapter (1.5 m)

1 x Adapter cable (1.5 m)

4 x Screws to attach to wall

1 x Instruction manual
