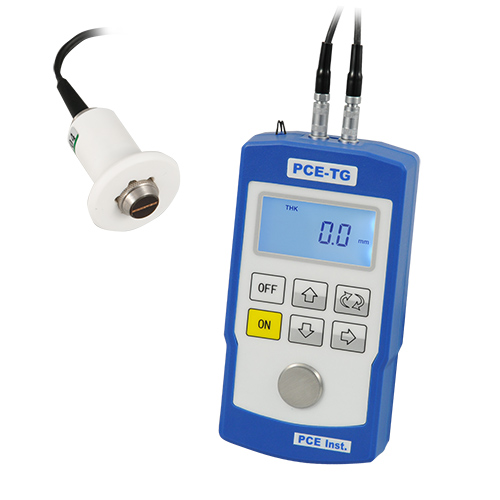

PCE TG 110 Material Thickness Meter (2.5~200 mm)

Specification

Measurement range:2.5 mm ... 200 mm / 0.10 in ... 7.87 in

Measurable materials:Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)

Frequency:Standard 5 MHz, diameter probe 12 mm / 0.5 in

Resolution:0.1 mm / 3.94 mil

Calibration:3.0 mm / 0.1 in integrated steel block

Accuracy:± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in

± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in

Sound velocity range:1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)

Sound velocity resolution:1 m/s

Display:4 digit LCD display

Surface temperature for probe:Standard -10 ... 400°C / 14 ... 752°F

Measuring head shape:Straight

Operating temperature range:0 ... 40°C / 32 ... 104°F

Ambient humidity:20 ... 90% r.H.

Battery status:Low power indicator

Power supply:2 x 1.5V AA batteries

Battery life:250 h

Auto shutdown:For battery conservation (after about 3 minutes without operation)

Dimensions:127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)

Weight:270 g / < 1 lb incl. batteries

Delivery contents

1 x PCE-TG 110 Material Thickness Meter

1 x High-temperature contact transducer with 1 m (3.3 ft) cable

2 x Batteries

1 x Bottle of contact gel

1 x Carrying strap

1 x Carrying case

1 x User manual
