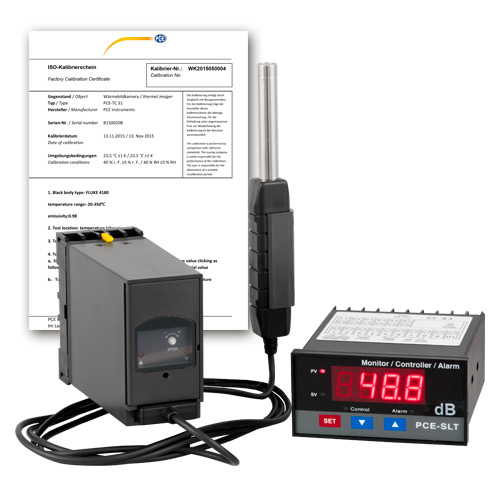

PCE SLT-ICA Noise Meter / Sound Meter

Specification

Sound sensor

Measuring range:30 ... 130 dB in three areas

Resolution:0.1 dB

Accuracy:± 1.5 dB

Rating:A

Care:Via transmitter

Cable length:1.5 m / 4.9 ft

Wall mount:To screw on (included)

Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

Microphone:1/2" precision electret microphone

Standard:IEC 61672 class II

Transmitter

Casing:ABS plastic

Care:90 ... 260 AC V (max 1.5 A)

Calibration:Adjustable via grub screw

Exit:4 ... 20-mA

Protection:IP 54

Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

Digital display

Input signal from the transmitter:4 - 20-mA

Display:-1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / user-selectable)

Programming data (decimal place, limit value ...):Are stored in the device

Control output:3-point (Com, NO, NC)

Alarm output:Relay output: 5 A / 240V AC

Care:90 ... 260 AC V / 50 ... 60 Hz

Dimensions / panel cutout according to DIN:92 (+0.8) x 45 (+0.5) mm / 3.6 (+0.03) x 1.8 (+0.02) in

Weight:About 250 g / < 1 lb

Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

Protection:IP 65

Delivery contents

1 x Noise meter SLT-ICA

1 x Noise sensor to 1.5 m / 4.9 ft cable

1 x Noise transmitter

1 x Digital display

1 x Sensor bracket to screw on

1 x User manual

1 x ISO calibration certificate
