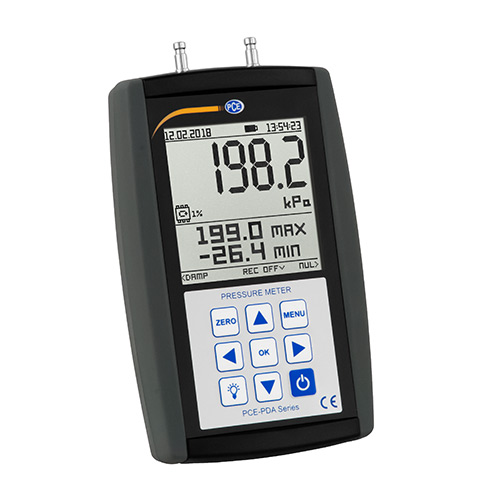

PCE PDA 1L Differential Pressure Meter (±2kPa、±0.5％)

Specifications

Measuring range temperature: 0 ... 50°C / 32 ... 122°F

Resolution:0.1°C / 0.2°F

Accuracy:± 1°C / 2°F

Measuring range pressure:± 2 kPa

Resolution:0.1 / 1 Pa

Accuracy:± 0.5% of final value

Nominal pressure:2 kPa

Overpressure:10 kPa

Burst pressure:100 kPa

Media:Liquids / air

Measuring rate10 Hz

Measurement units:Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF

Pressure connections:5 mm nipple for quick connectors

Max, Min and Hold function:Yes

Data logger:1024 memory slots

1 s ... 255 h Recording time per memory location

1 s ... 24h recording interval

Medium:For air and non-explosive gasses

Zero correction:Yes, with a zero key

Averaging:Yes, between 0.1 ... 9.9 s

Display:Graphic LCD with backlight

Protection:IP41

Power supply:2 x 1.5V AA battery / 1.2V NiMh battery

5V / 500-mA USB power adapter

Current consumption:50-mA (with backlight)

10-mA (without backlight)

Operating temperature:0 ... 50°C / 32 ... 122°F

Storage temperature:10 ... 55°C / 50 ... 131°F

Dimensions:145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in

Weight:About 285 g / < 1 lb

Dilivery Contents

1 x Differential pressure meter PCE-PDA 1L

2 x 1.2V AA NiMh batteries

1 x USB power adapter

1 x Micro USB cable

1 x User manual
