Vibration | ||
| Range | Acceleration | 0.5 to 199.9m/s² |
| Velocity | 0.5 to 199.9mms-1 | |
| Variation | 0.005 to 1.999mm | |
| Resolution | Acceleration | 0.1m/s² |
| Velocity | 0.1mm/s | |
| Variation | 0.001mm | |
| Accuracy | Acceleration | ±5% ±2 digits |
| Velocity | ±5% ±2 digits | |
| Variation | ±5% ±2 digits | |
| Range of frequency | 10 Hz to 1 kHz | |
Revolution per minute (RPM) | ||
| Measurement range | Revolutions (optical) | 10 to 99999 r.p.m. |
| Revolutions (byr contact) | 0.5 to 19999 r.p.m. | |
| Velocity | 0.05 to 1999 m/min | |
| Resolution | 0.1 r.p.m. (<1000 r="" p="" m="" br=""> 1 r.p.m. (>1000 r.p.m.); 0.01 m/min (<100 m="" min="" br=""> 0,1 m/min (>100 r.p.m.) | |
| Accuracy | ±0.05% of reading; ±1 digit | |
| Measurement distance | 50 to 1500mm (depending on surface) | |
General properties | ||
| Internal memory | 1000 readings | |
| RS-232 port | yes | |
| Display | LCD with graphic bars | |
| Power | 4 AA batteries | |
| Dimensions | 188 x 76 x 47mm | |
| Operating conditions | 0 to 50ºC / <80% r.h. | |
| Weight | 400g | |
| Eclosure | plastic | |
Delivery Scope

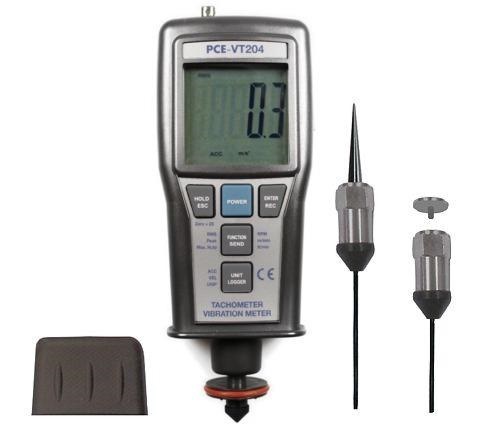

1 x PCE-VT 204 multifunction accelerometer
1 x Flat sensor with 1.5 m / .04 in cable
1 x 70 mm / 2.8 in needle sensor
1 x Magnetic base
1 x Mechanical wheel sensor
1 x 600 mm / 23 in of reflective tape
1 x Carrying case
4 x Batteries
1 x User manual
