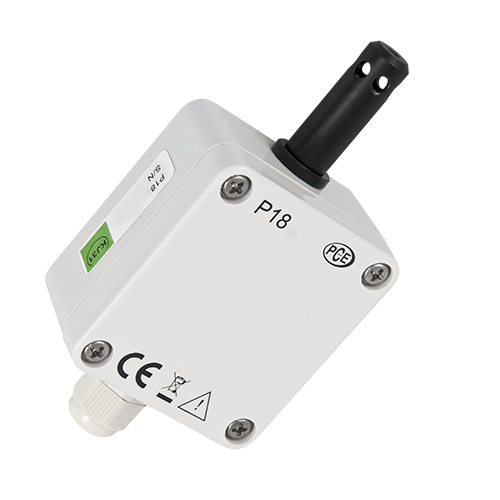

PCE P18-1A0E0 Humidity Sensor (0 - 100% RH / - 20 - 60 ° C)

* Humidity

- measuring range : 0 - 100% RH

- accuracy

± 2% (in the range 10% - 90% RH)

± 3% (remaining range)

- hysteresis : ± 1% RH

* Temperature

- measuring range : - 20 - 60 ° C

- accuracy :

± 0.7% of the measuring range

- temperature effect : ± 25% / 10 ° C

* Humidity sensor output

analog output4 ... 20 mA

Max. connectable resistor at the output≤ 500 Ω

Data Interface : RS-485 Modbus RTU

transfer mode : 8N1, 8N2, 8E1, 8O1

baud rate : 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bit / s

General technical data for humidity sensors

supply voltage: 19 V ... 30 V DC

power: <1.5 W

ambient temperature : - 30 ° C ... 85 ° C

Max. humidity≤ 95% RH

preheat15 minutes

degree of protection : IP 65

Assembly : wall mounting

Dimensions (wxhxd) : > 35 x 58 x 118 mm

Weight: 125 g
