PCE LFG 5 Dynamometer (5 N / 0,5 kg / 1,1 lbs)

Specification

Measuring range:5 N / 0.5 kg / 1.1 lbs

Resolution:0.0005 N / 0.00005 kg / 0.0001 lbs

Measurement accuracy:± 0.2% of measuring range

Calibration:5-point calibration possible

Measurement Units:N, gf, kgf, ozf, kg, lbf, mN

Max. overload:± 20% of measuring range

Measuring rate:Adjustable 10/5/2/1 values per s

Display:Graphic display 160 x 128 px, simultaneous display of relevant data

Menu navigation:Multilingual

Internal memory:1000 values

Storage:

Manually - by pressing a button

Automatically - after AUTO-peak function

Interface:Serial RS-232 - 9 pin; USB 2.0

Printer port:Via the RS-232 interface or USB 2.0

Software and data cable:Incl. software for evaluating and controlling

Environmental conditions:Operating: -10°C ... 40°C / 14°F ... 104°F; ,20 ... 80% R.H.

Storage: -20°C ... 50°C / -4°F ... 122°F

5 ... 90% R.H.

Power supply:NiMH battery 800-mAh internal, Universal USB/BM charger

Input: 110 ... 240V AC

Battery life:About 16 hrs. of continuous operation at full load

Force-receiving piece:7 mm / 0.3 in long, 6 mm / 0.2 in thread

Dimensions:144 mm x 73 m x 33 mm; 5.7 in x 2.9 in x 1.3 in

Weight:0.7 kg / 1.5 lbs

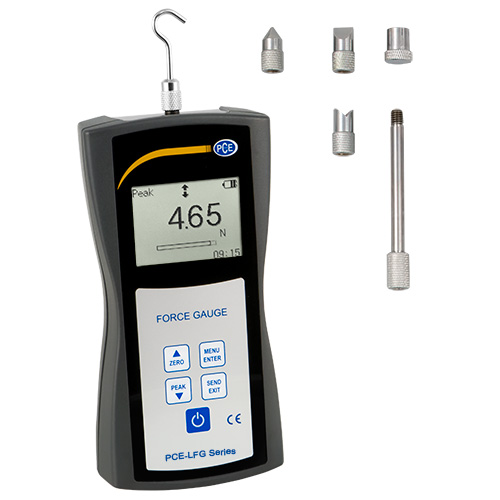

Delivery contents

1 x PCE-LFG 5 Dynamometer

1 x Chisel head adapter

1 x Flathead Adapter

1 x Pointed head adapter

1 x Hook adapter

1 x Ball head adapter

1 x Extension rod (90 mm / 3.5 in)

1 x Evaluation and control software incl. USB data cable

1 x Power supply

1 x Carrying case

1 x User manual
