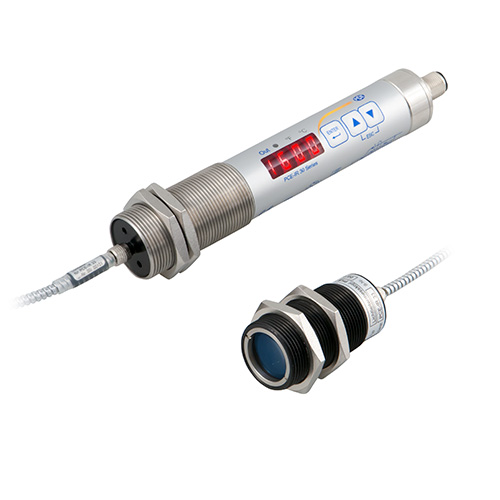

PCE IR 33 Infrared Thermometer

Specification

Measuring range:300 ... 1600°C / 572 ...2912°F

Spectral range:1 ... 1.7 µm

Focus distance:1500 mm / 4.9 ft

Spot:@ 1500 mm / 4.9 ft at 7.2 mm

Analog output:0/4 ... 20-mA (scaleable)

Load:500 Ω

Current output resolution:0.2 K + 0.03%

Display:LED

Resolution Display:1

Response time:t98 <2 ms

Repeatability:1 K

Uncertainty: 0.3% of reading + 2.5 K

Switching output:OUT 1 OC 24V / 150-mA

Power supply:24V DC

Environmental Electronics : 0 ... 65°C / 32 ... 149°F, max. 95% r.h.

Probe + FO:0 ... 250°C / 32 ... 482°F

Weight:400 g / 2.2 lbs

Dimensions Electronics:M30 x 200 mm / 1.2 x 7.9 in (without plugs)

FO measuring head:M30 x 86 mm / 1.2 x 3.4 in

Delivery contents

1 x Infrared thermometer PCE-IR 33

1 x Sensor head for the PCE-IR 33

1 x Glass fiber cable

1 x Manual
