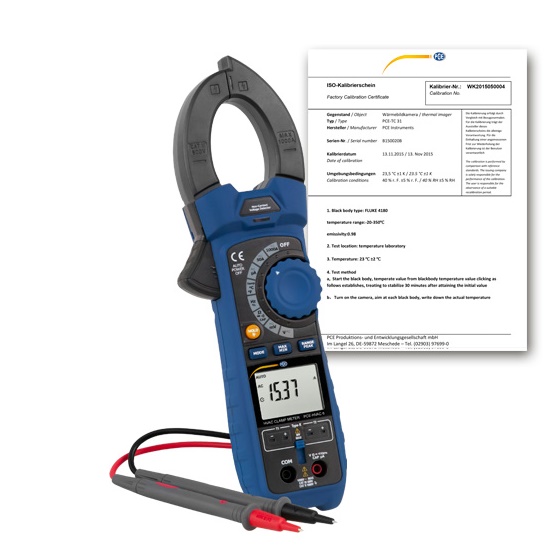

PCE HVAC 6-ICA Digital Clamp (AC/DC 1000A)

- Current measurement DC A:

Measuring range; Resolution; Accuracy (of measured value)

500 μA; 0.01 μA; ± (1% + 6 digits)

5000 μA; 0.1 μA; ± (1% + 6 digits)

50 A; 0.01A; ± (2.5% + 5 digits)

1000 A; 0.1 A; ± (2.5% + 30 digits)

- Current measurement AC A:

Measuring range; Resolution; Accuracy (of measured value)

500 μA; 0.01 μA; ± (1.5% + 30 digits)

5000 μA; 0.1 μA; ± (1.5% + 30 digits)

50 A; 0.01A; ± (2.5% + 30 digits)

1000 A; 0.1 A; ± (2.8% + 30 digits)

- Resistance measurement:

Measuring range; Resolution; Accuracy (of measured value)

500 Ω; 0.01; ± (1% + 9 digits)

5 kΩ; 0.0001; ± (1% + 5 digits)

50 kΩ; 0.001; ± (1% + 5 digits)

500 kΩ; 0.01; ± (1% + 5 digits)

5 MΩ; 0.0001; ± (3% + 10 digits)

50 MΩ; 0.001; ± (3.5% + 10 digits)

- Voltage measurement DC V:

Measuring range; Resolution; Accuracy (of measured value)

500 mV; 0.01 mV; ± (0.1 % + 8 Digit)

5 V; 0.0001 V; ± (0.1 % + 4 Digit)

50 V; 0.001 V; ± (0.1 % + 4 Digit)

500 V; 0.01 V; ± (0.1 % + 4 Digit)

600 V; 0.1 V; ± (0.5 % + 4 Digit)

- Voltage measurement AC V (50 Hz ... 100 Hz):

Measuring range; Resolution; Accuracy (of measured value)

500 mV; 0.01 mV; ± ( 0.8 % + 9 Digit) (at 50 Hz / 60 Hz)

5 V; 0.0001 V; ± (1 % + 30 Digit)

50 V; 0.001 V; ± (1 % + 30 Digit)

500 V; 0.01 V; ± (1 % + 30 Digit)

600 V; 0.1 V; ± (1 % + 30 Digit)

- Capacitance measurement:

Measuring range; Resolution; Accuracy (of measured value)

500 nF; 0.01; ± (3.5% + 40 digits)

5000 nF; 0.1; ± (3.5% + 10 digits)

50 μF; 0.001; ± (3.5% + 10 digits)

500 μF; 0.01; ± (3.5% + 10 digits)

5mF; 0.0001; ± (5% + 10 digits)

- Frequency measurement:

Measuring range; Resolution; Accuracy (of measured value)

50 Hz; 0.001; ± (0.3% + 2 digits)

500 Hz; 0.01; ± (0.3% + 2 digits)

5 kHz; 0.0001; ± (0.3% + 2 digits)

50 khz; 0.001; ± (0.3% + 2 digits)

500 kHz; 0.01; ± (0.3% + 2 digits)

5 Mhz; 0.0001; ± (0.3% + 2 digits)

10 MHz; 0.001; ± (0.3% + 2 digits)

- Duty cycle:

Measuring range: 5% ... 95%

Resolution: 0.1

Accuracy (of measured value): ± (1% + 2 digits)

Pulse width: 100 μs ... 100 ms

Frequency: 10 Hz ... 10 kHz

- Temperature:

Measuring range: -100 ... 1000°C / -148 ... 1832°F

Resolution: 0.1

Accuracy (of measured value): ± (1% + 2.5°C / 3.5°F)

-General technical data:

Conductor diameter: Max. 48 mm / 1.9 in

Display: Two lines 50,000 digits

Continuity test: 50 ohms / < 50 mA

Diode test: 0.3 mA / 2.8 V DC

Battery indicator: Battery icon when battery low

Overrange: OL, if measuring range exceeded

Sample rate: 2 Hz

Peak detection: > 1 ms

Thermocouple: Type K

Fuse: 500-mA ceramic quick-acting

AC bandwidth (AC A / AC V): 50 Hz ... 400 Hz

AC measurement: True RMS

Operating conditions: 5 ... 40°C / 41 ... 104°F, max. 80% RH at 31°C / 87.8°F

Storage conditions: -20 ... 60°C / -4 ... 140°F, max. 80% RH

Power supply: 9V block battery

Automatic shutdown: After about 30 minutes

Dimensions (W x H x D): 230 x 76 x 40 mm / 9 x 3 x 1.6 in

Weight: 315 g / < 1 lb

Safety: IEC 1010-1 (2001):

EN 61010-1 (2001)

CAT III 600V

CAT II 1000V

Degree of pollution 2

Delivery scope:

1 x Clamp meter PCE-HVAC 6

1 x Transport bag

2 x Test leads

1 x Battery 9V block battery

1 x ISO Calibration Certificate
