PCE HVAC 2-ICA Multifunction Airflow Meter

Specifications

Air pressure

Accuracy:± 0.3% of reading at 25°C / 77°F

Repeatability:± 0.2% (± 0.5% of reading)

Linearity / hysteresis:± 0.29% of reading

Pressure range:5000 Pa

Maximum pressure:10 psi

Response time:Typically 0.5 seconds

Measuring range:

0.7252 psi

50.00 mbar

20.07 inH2O

509.8 mmH2O

5000 Pa

Resolution:

0.0001 psi

0.01 mbar

0.01 inH2O

0.1 mmH2O

1 Pa

Selectable units:Mbar, psi, inH2O, mmH2O, or Pa

Air speed

Measuring range:

1 ... 80 m / s

200 ... 15733 ft / min

3.6 ... 288 km / h

2.24 ... 178.66 MPH

2 ... 154.6 knots

Resolution:

0.01 m / s

1 ft / min

0.1 km / h

0.01 MPH

0.1 knots

Accuracy:

At m / s: ± 2.5% of measured value

At ft / min, Km / h, MPH and Node: Depending on the air speed and the size of the air duct

Flow rate

Measuring range:

0 ... 99999 m³ / min

0 ... 99999 ft³ / min

Resolution

0.001 ... 100 m³ / min

0.0001 ... 100 ft³ / min

Temperature

Measuring range:0 ... 50°C / 32 ... 122°F

Resolution:0.1°C / 0.18°F

Accuracy:± 1°C / ± 1.8°F

Diameter of pitot tube:8 mm / 0.3 in

Length of measuring hoses:Each 85 cm / 33.46 in

Total length of the tube:335 mm / 13.18 in

Low battery indicator:Yes

Power supply:9V block battery

Operating conditions:0 ... 50°C / 32 ... 122°F / <90% RH non-condensing

Storage conditions:-10 ... 60°C / 14 ... 140°F / <90% RH non-condensing

Internal memory:99 measured values ​​per parameter

Interface:USB

Display:LCD

Housing material:ABS plastic

Dimensions:Device: 280 x 95 x 45 mm / 11.02 x 3.7 x 1.7 in

Pitot tube: 335 mm / 13.18 in - Ø 8 mm / 0.31 in

Weight: (incl. pitot tube, battery and measuring hoses)600 g / 1.3 lbs

Dilivery Contents

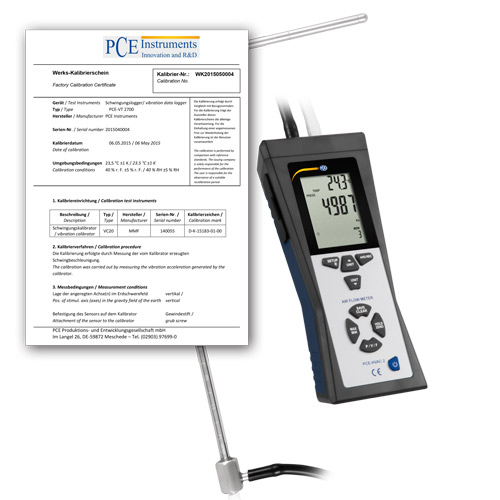

1 x PCE-HVAC 2 multifunction airflow meter with pitot tube

2 x Connecting hoses

1 x 9V block battery

1 x USB cable

1 x Carrying case

1 x User manual

1 x ISO calibration certificate
