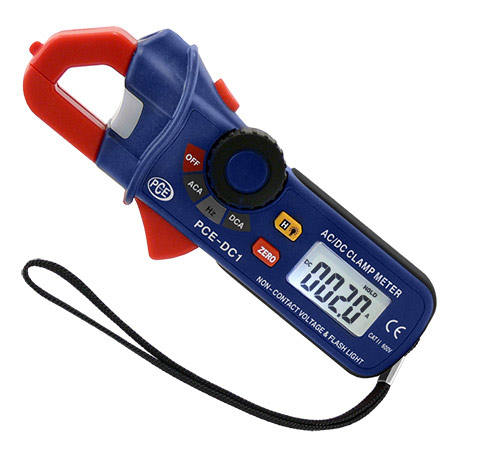

PCE DC1 Mini Clamp Meter (AC/DC 200A)

Specifications

AC current (50/60 Hz):

Sector / resolution / accuracy; 200 A / 100-mA / ±3.0% + 8 digits

DC current:

Sector / resolution / accuracy

200 A / 100-mA / ±2.8% + 8 digits

AC test voltage (without contact):100 VAC ... 600 VAC 50 / 60 Hz

Frequency:

Sector / resolution / accuracy

40 ... 50 Hz / 0.01 Hz / ±1.2% + 5 digits

51 ... 510 Hz / 0.1 Hz / ±1.2% + 3 digits

0.51 ... 1 kHz / 0.001 kHz / ±1.2% + 3 digits

Illumination of the measurement area:white LEDs

Diameter of the conductor:Max. 18 mm / .7 in

Display:With white LEDs, backlit LCD with 3 2/3 positions

Power:2 AA batteries

Enclosure:PVC

Dimensions:155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in

Weight:155 g / < 1 lb

Dilivery Contents

1 x PCE-DC1 Mini Clamp Meter

1 x Bag

2 x Batteries

1 x User's manual
