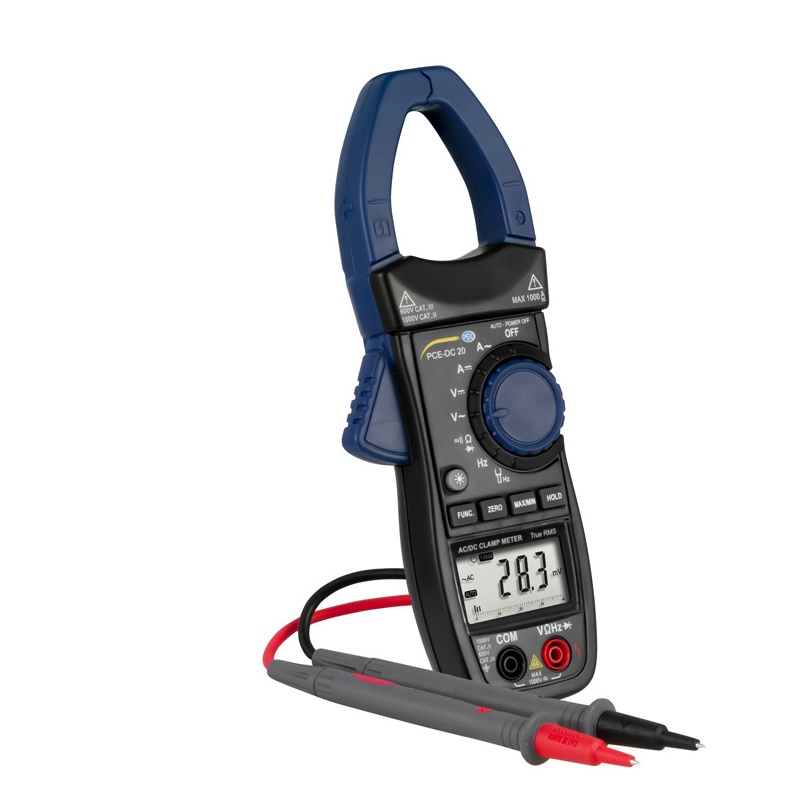

PCE DC 20 Clamp Meter (AC/DC 1000A; 1000V)

DC power

measuring range: 400 A; 600 A; 1000 A

Resolution: 0.1 A; 1 A; 1 A

Accuracy: ± 3% + 5 digits; ± 3% + 5 digits; ± 3% + 6 digits

Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds

AC power

measuring range: 400 A; 600 A; 1000 A

Resolution: 0.1 A; 1 A; 1 A

Accuracy: ± 3% + 5 digits; ± 3% + 5 digits; ± 3% + 6 digits

Frequency range: 50 ... 60 Hz

Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds

DC voltage

measuring range: 4V; 40; 400V; 600V; 1000V

Resolution: 1mV; 10mV; 0.1V; 1V; 1V

Accuracy: ± 0.5% + 5 digits; ± 0.5% + 5 digits; ± 0.5% + 5 digits; ± 1% + 5 digits; ± 1% + 5 digits

Input impedance: 10 MΩ

Overvoltage protection: 1000V DC or 700V AC RMS

AC voltage

measuring range: 4V; 40; 400V; 600V; 1000V

Resolution: 1mV; 10mV; 0.1V; 1V; 1V

Accuracy: ± 1.2% + 5 digits; ± 1.2% + 5 digits; ± 1.2% + 5 digits; ± 2% + 5 digits; ± 2% + 5 digits

Input impedance: 10 MΩ

Overvoltage protection: 1000V DC or 700V AC RMS

Frequency range: 40 ... 400 Hz

Resistance

measuring range: 400 Ω; 4 kΩ; 40 kΩ; 400 kΩ; 4 MΩ; 40 MΩ

Resolution: 0.1 Ω; 1 Ω; 10 Ω; 0.1 kΩ; 1 kΩ; 10 kΩ

Accuracy: ± 1% + 5 digits; ± 1% + 5 digits; ± 1% + 5 digits; ± 1% + 5 digits; ± 1% + 5 digits; ± 2% + 5 digits

Overvoltage protection: 250V AC / DC RMS

Frequency (direct)

measuring range: 40 Hz; 400 Hz; 4 kHz; 40 kHz; 100 kHz

Resolution: 1 Hz; 1 Hz; 10 Hz; 100 Hz; 100 Hz

Accuracy: ± 0.1% + 1 digits; ± 0.1% + 1 digits; ± 0.1% + 1 digits; ± 0.1% + 1 digits; ± 0.1% + 1 digits

Measuring range: 1 ... 10V RMS, 40 Hz ... 100 kHz

Frequency (current clamp)

measuring range: 40 Hz; 400 Hz

Resolution: 0.01 Hz; 0.1 Hz

Accuracy: ± 0.1% + 1 digits; ± 0.1% + 1 digits

Frequency range: 40 ... 400 Hz (> 20 A)

Further measuring functions

Continuity test

Beep at < 40 Ω

Diode test

Indicates the forward voltage

General specifications

Measuring rate:2 ... 3 measurements per second

Display: LCD 3999 digits

Measuring range selection: Automatically

Automatic shutdown: After 30 minutes non-use, deactivatable

Maximum forceps opening: 40 mm / 1.6 in

Coefficients: 0.1 x accuracy x °C / °F*

Maximum voltage: 1000V CAT II, 600V CAT III

Maximum working height: 2000 m / 6561 ft

Operating conditions: 5 ... 35°C, < 75% rh

Storage conditions: -10 ... 35°C, < 75% rh

Power supply: 3 x 1.5V AAA batteries

Dimensions: 225 x 86 x 32 mm / 8.9 x 3.4 x 1.3 in

Weight:About 330 g / < 1 lb

Accuracies are given at ambient conditions of 18 ... 28°C, 65 ... 83°F.

*The temperature is the difference between the temperature of the operating conditions and the current ambient temperature.

Delivery Scope

1 x Digital Multimeter PCE-DC 10

1 x Pair of test leads

1 x Transport bag

3 x 1.5V AAA batteries

1 x User manual
