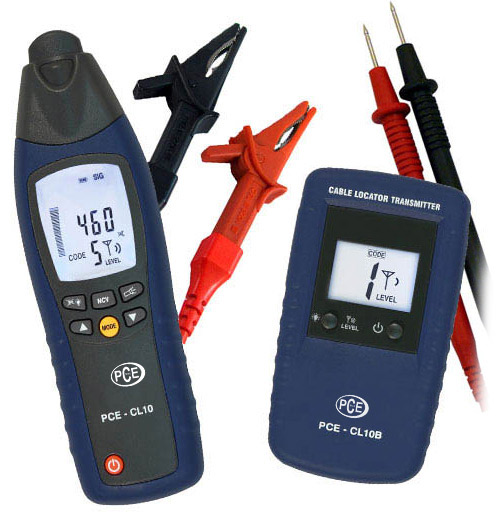

PCE CL 10 Cable Detector

Specifications

Operating temperature / humidity:

0 ... +40 ºC or +32 ... +104 ºF / max. 80% rh

Storing temperature / humidity:

-20 ... + 60 ºC or -4 ... +140 ºF / max. 80% rh

Receiver

Auto shut-off: Approx. 5 min.

Absorbed power: Max. 40 mA

Display: LCD with bar graph

Battery: 9 V

Dimensions: 192 x 61 x 37 mm / 7.56 x 2.40 x 1.46 in

Weight: Approx. 180 g / 0.40 lb

Signal generator

Maximum voltage: 400 V AC (0-60 Hz 400 V DC)

Transmitting frequency: 125 kHz

Display: LCD

Auto shut-off" Approx. 1 hour

Absorbed power: Max. 18 mA

Battery: 9 V

Fuses: Flink, 0.5 A / 500 V, 6.3 x 32 mm

Overvoltage category: CAT III / 300 V

Dimensions: 130 x 69 x 32 mm / 5.12 x 2.72 x 1.26 in

Weight: Approx. 130 g / 0.30 lb

Dilivery Contents

1 x PCE-CL 10 cable detector

1 x receiver

2 x batteries

2 x testing cables

2 x alligator clips

2 x test probes

1 x carrying case

1 x user manual
