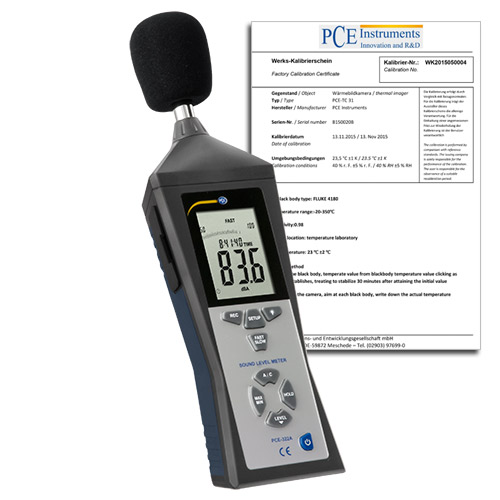

PCE 322A-ICA Noise Meter / Sound Meter (30~130 dB)

Specification

PCE-322A

Noise levels:

Low: 30 ... 80 dB

Medium: 50 ... 100 dB

High: 80 ... 130 dB

Auto: 30 ... 130 dB

Dynamic range:50 dB

Display:4-digit LCD

Resolution:0.1 dB

Accuracy:±1.4 dB

Sampling rate:2 x per second

Frequency:31.5 Hz ... 8 kHz

Storage capacity:32,700 readings (9 hours @ 1 second interval)

Frequency weighting:A and C

Time weighting:Fast (125 ms)

Slow (1 sec.)

Microphone type:Electret condenser

Functions:MIN, MAX, HOLD, ALARM

Analog output:AC/DC millivolt

Headphone

Data interface:USB port

Automatic shutdown:After 15 minutes inactivity

Operating conditions:0 ... +40 °C / +32 ... +104 °F, < 90 % RH

Storage conditions:-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH

Power supply:9 V block battery (for approx. 30 h continuous operation)

AC power

Dimensions:280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"

Weight:Approx. 350 g / 0.78 lb

Standards:IEC 61672-1 Class II

Delivery contents

1 x PCE-322A-ICA noise meter / sound meter

1 x wind noise suppressor

1 x USB cable

1 x mini tripod

1 x calibration screwdriver

1 x battery

1 x power adapter

1 x carrying case

1 x user manual

1 x iso calibration certificate
