Measurement rangesMeasurement ranges
Steel/ iron: HRC: 20 to 67.9; HRB: 59.6 to 99.5; HB: 80 to 647; HV: 80 to 940; HSD: 32.5 to 99.5
Tools: HRC: 20.5 to 67.1; HV: 80 to 898
Stainless steel: HRC: 19.6 to 62.4; HRB: 46.5 to 101.7; HB:85 to 655; HV: 85 to 802
GC. iron: HB: 93 to 334
NC. iron: HB: 131 to 387
Cast aluminium: HB: 30 to 159
Brass: HRB: 13.5 to 95.3; HB:40 to 173
Bronze: HB:60 to 290
Copper: HB:45 to 315
Scales of hardness: HL, HRC, HRB, HB, HV, HSD
Types of materials (adjustable)
STEEL
CWT. STEEL
STAIN. STEEL
GC. IRON
NC. IRON
C. ALUMIN
BRASS
BRONZE
COPPER
Accuracy: ±6 HL para HL = 800 (0.8%)
Instrument of percussion: type D (integrated)
Maximum hardness: 940 HV
Radius of the moving component (convexed / concaved): R min = 30mm (with 10mm component)
Minimum weight of the moving component
5kg without base
2 to 5kg with base
50g to 2 kg with base and accompanying board
Minimum depth of the moving component: 3mm with accompanying board
Minimum penetration: 0.8mm
Power: 9V DC rechargeable
Operating time: 12h
Maximum temperature of the moving component: +120°C
Operating temperature: 0 to 50°C
Dimensions: 100 x 60 x 33mm
Weight: 150g

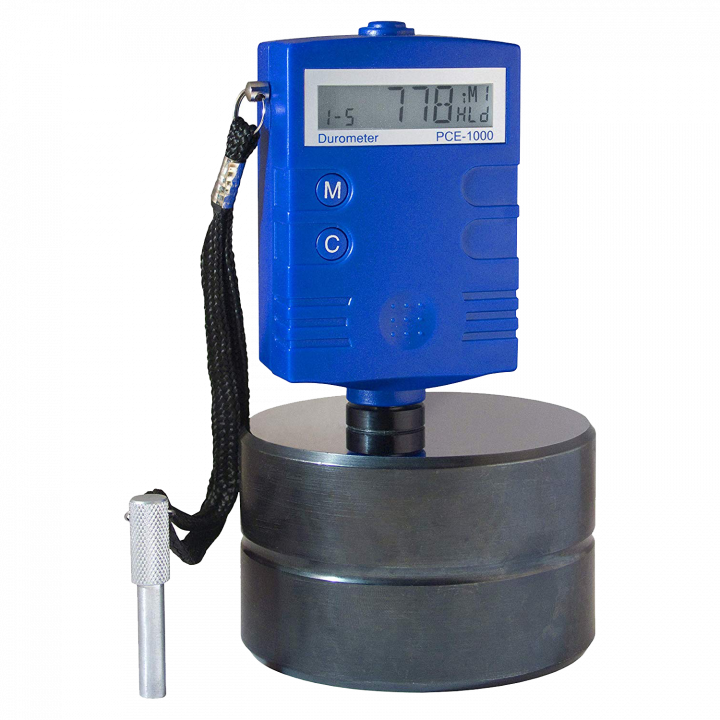

Delivery Contents: 1 x PCE-1000 durometer
1 x elastic pin
1 x test block
1 x charger
1 x cleaning brush
1 x case
1 x user's manual
