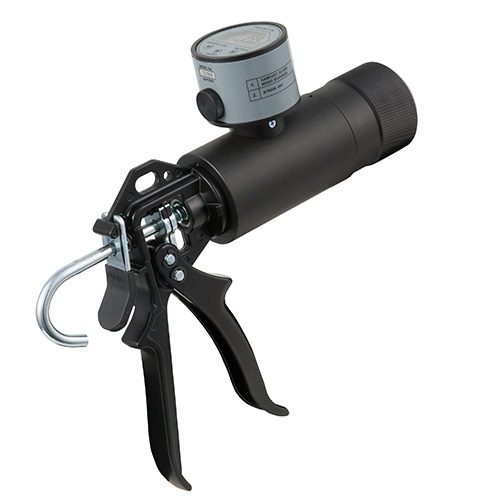

PCE WM1N Absolute Moisture Meter (8~30%, ± 10%rdg)

Specification

Measuring range humidity meter wood chip

Sawdust, wood chips *: 8 ... 30%

Straw, hay: 8 ... 25%

General information about the Sawdust Moisture Meter

Resolution: 0,1 %

Accuracy: ±10 % of reading; Example: reading possible tolerance ± 15% = 1.5%

Volume of the measurement chamber: 120 cm³

Sample size for wood chips: * max. 20 x 15 x 15 mm

Pressure during the measurement: about 0,2 MPa

Temperature compensation: digitally adjustable

Display: 3-digit LCD

Power supply: 12V, Battery Typ 23A

Operating temperature range: 0 ... +50 °C

Dimensions: 300 x 220 x 65 mm

Weight: 990 g

Dilivery Contents

1 x Moisture meter for wood shavings PCE WT1N

1 x battery

1 x carrying case

instructions
