Manufacturer: PCE-UK

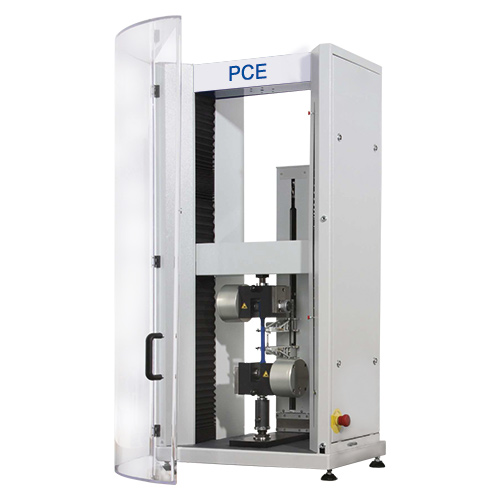

Model: PCE-UTU 50
Warranty: 12 months
Specifications
Rated load: 50 kN
Accuracy class: 0.5 / EN 7500-1
Drive: controlled DC motor
Test speed: 0.001 ... 500 mm/min, Resolution: 1 µm
Distance measurement: incremental
Standard stroke: 1000 mm (Without tensioning and tensioning adapters)
Work-life: 450 mm
Supply: 230 V AC, 50 Hz
Framework:
2 ground guide columns
2 ball circulating spindles
Column cover with bellows seal
Limit switch for travel limit
Powder coated housing parts
Colour: RAL 7035
Safety devices: Enclosure from Makrolon; Safety switching contact
Measurements: HxWxD 1330 x 650 x 530 mm
Weight: ca. 140 kg
Force transducer for UPM
Installed underneath the mobile traverse for compressive and tensile forces.
Measuring range: 1 ... 50 kN
Nominal value: 2 mV/V
Relative characteristic deviation: ≤ ±0.1 %
Relative linearity deviation: ≤ ±0.02 %
Relative creep error: ≤ ±0.03 % after 30 min
≤ ±0.07 % after 8 h
Accuracy class: to EN ISO 7500-1, Class 0.5
Overload: 50 %
Protection class: IP 67
TEDS module: integrated, to IEEE 1451-4
automatic sensor detection
Control and evaluation electronics
Measured value acquisition: 1 kHz
Display: LC-Display
Interface: RS-232
Functions:
Force regulation
Distance regulation
Manual positioning
Processing of a programmed sequence
Specification of the crosshead speed
Return to the starting position
Cycles
Presetting limits for force / distance / time
Resetting the force / distance indicator to 0
Adjustable control factor
Breaking recognition
Maximum value memory
For 2 force transducer: choice of the work area
Dilivery Contents
1 x material test stand PCE-UTU 50
1 x force transducer (including mounting material, plug, socket and cabling)
1 x control and evaluation electronics
1 x intelligent measuring and control technology (including slave module)
1 x software
1 x instruction manual
