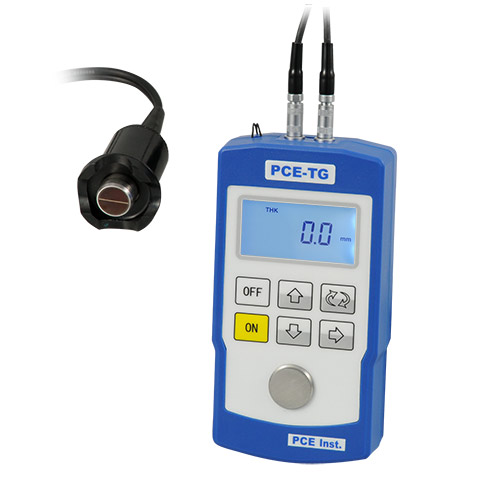

PCE TG 100 Ultrasonic Thickness Meter (0.8 ~ 225 mm)

Specification

Measurement range:0.8 mm ... 225 mm / 0.03 in ... 8.86 in

Measurable materials:Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)

Frequency:5 MHz

Resolution:0.1 mm / 3.94 mil

Calibration:3.0 mm / 0.1 in integrated steel block

Accuracy:±(0.5% + 0.1 mm) at 0.8 ... 99.9 mm

±(1% + 1 mm) at 100 ... 300 mm

Sound velocity range:1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)

Sound velocity resolution:1 m/s

Display:4 digit LCD display

Surface temperature for probe:Standard -10 ... 50°C / 14 ... 122°F

Measuring head diameter:10 mm / 0.4 in

Measuring head shape:Straight

Operating temperature range:0 ... 40°C / 32 ... 104°F

Ambient humidity:20 ... 90% r.H.

Battery status:Low power indicator

Power supply:2 x 1.5V AA batteries

Battery life:250 h

Auto shutdown:For battery conservation (after about 3 minutes without operation)

Dimensions:127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)

Weight:270 g / < 1 lb incl. batteries

Delivery contents

1 x PCE-TG 100 Material Thickness Meter

1 x Contact transducer with 1 m (3.3 ft) cable

2 x Batteries

1 x Bottle of contact gel

1 x Carrying strap

1 x Carrying case

1 x User manual
