PCE PCE-TDS 200 SM Ultrasonic Flow Meter (-32~+32 m/s)

Speed

Measurement range up to: -32 ... +32 m/s

Resolution: 0.001 m/s

Accuracy: DN ≥50 mm: ±1.5 % of Rd for velocities >0.3 m/s / DN <50 mm: ±3.5 % of

Rd for velocities >0.3 m/s

Ultrasonic sensor

Designation: PCE-TDS 200 S SENSOR

Pipe diameter: DN 15 ... 100 mm / Ø 20 ... 108 mm

Dimension: 45 x 30 x 30 mm

Frequency: 1 MHz

Operating temperature: -30 ... 160 °C

Sensor cable length: 5 m

Ultrasonic sensor

Designation: PCE-TDS 200 M SENSOR

Pipe diameter: DN 50 ... 700 mm / Ø 57 ... 720 mm

Dimension: 70 x 40 x 40 mm

Frequency: 1 MHz

Temperature: -30 ... 160 °C

Sensor cable length: 5 m

General technical data

Measuring functions: Flow velocity, Volume flow, Volume

Units: metric, imperial

Units additional information:

Dimensions: mm, in

Flow velocity: m/s, ft/s

Volume flow: m³, l, gal, igl, mgl, cf, bal, ib, ob

Volume: m³, l, gal, igl, mgl, cf, bal, ib, ob

Time specification: seconds, minutes, hours, days

Display size: 2,8 Inch

Storage medium: Internal memory

Storage capacity: 32 GB

Storage interval from: 1 s

Storage interval to: 12 h

Interface: USB-C

Pipe material:Steel, Cast iron, Stainless steel, Aluminium, Brass, Copper, PVC, Iron, Nickel, Titanium, Zinc, Acrylic, Polyethylene, Polypropylene, Nylon, User-defined (manual entry of the transversal sound velocity of the pipe material)

Operating time: 10 h

Automatic power-off from...to: 1 ... 15 min.

Automatic power-off can be deactivated: Yes

Measuring method: Z, V, N, W

Alarm: optical, Acoustic

Alarm modes: Undercut, overflow, within, beyond

Reproducibility: ±0.5 %

Menu language: Turkish, English, Polish, Spanish, German, Chinese, Russian,

Japanese, French, Danish, Italian, Dutch, Portuguese

Protection class (device): IP52

Power supply: USB 5 VDC, 500 mA

Connector type: Device-europlug

Capacity: 2500 mAh

Operating conditions -20 ... 65 °C , 10 ... 95 % RH

Storage conditions -20 ... 65 °C , 10 ... 95 % RH

Dimensions ( L x W x H ) 165 x 85 x 32 mm

Weight: 263.5 g

Includes:

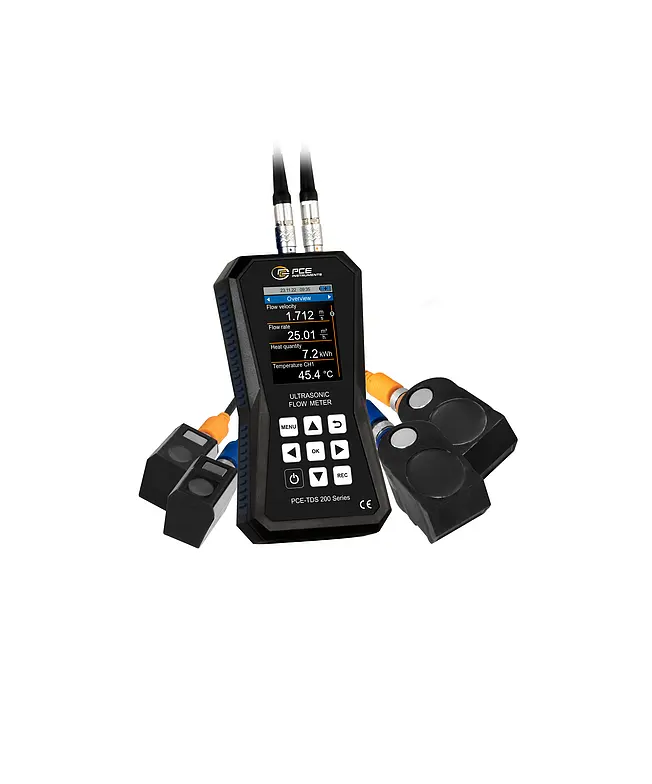

1 x Ultrasonic Flow Meter PCE-TDS 200 SM

1 x Flow sensors PCE-TDS 200 S SENSOR (pair)

1 x flow sensors PCE-TDS 200 M SENSOR (pair)

2 x 5 m connection cable

2 x detachable cable ties

1 x power supply unit

1 x USB-C cable

1 x ultrasonic contact gel

1 x PCE measuring tape

1 x plastic case

1 x instruction manual
