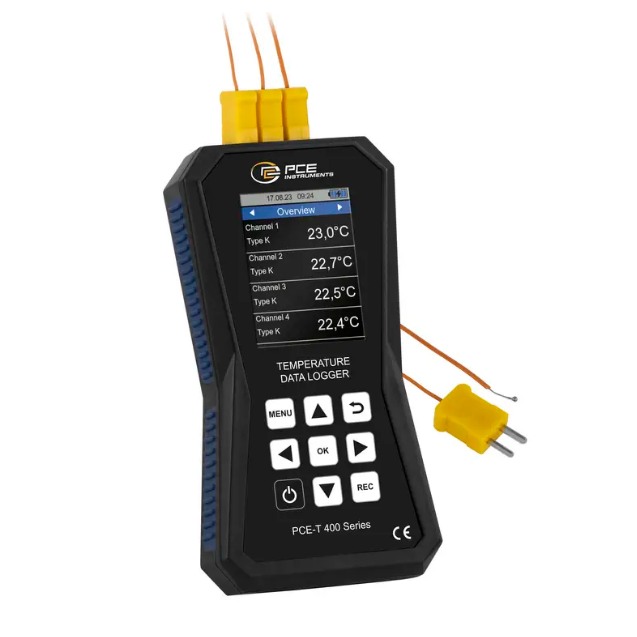

PCE PCE-T 420 Contact Thermometer (0°C~+1800°C)

- Temperature Type K:

Measurement Range: -200°C ... +1370°C

Resolution: 0.1°C

Accuracy: ± (0.04% + 0.3°C)

- Temperature Type J:

Measurement Range: -200°C ... +1050°C

Resolution: 0.1°C

Accuracy: ± (0.04% + 0.3°C)

- Temperature Type S:

Measurement Range: 0°C ... +1750°C

Resolution: 0.1°C

Accuracy: ± (0.05% + 1°C)

- Temperature Type R:

Measurement Range: 0°C ... +1750°C

Resolution: 0.1°C

Accuracy: ± (0.05% + 1°C)

- Temperature Type E:

Measurement Range: -200°C ... +850°C

Resolution: 0.1°C

Accuracy: ± 0.6°C

- Temperature Type T:

Measurement Range: -200°C ... +400°C

Resolution: 0.1°C

Accuracy: ± 0.6°C

- Temperature Type N:

Measurement Range: -200°C ... +1300°C

Resolution: 0.1°C

Accuracy: ± 0.6°C

- Temperature Type B:

Measurement Range: +600°C ... +1800°C

Resolution: 0.1°C

Accuracy: ± (0.05% + 1°C)

- General Technical Data:

Inputs: 4 channels for Thermocouples

Display Type: LCD

Units°C, °F

Display Size: 2.8 inches

Memory Capacity: 100 data sets; up to 100,000 measurements per data set

Memory Interval: 1 ... 43,200 s

Data Interface: USB-C

Power Supply: USB 5V DC 500mA

Battery Capacity: 2,500 mAh

Battery Voltage: 3.7 V

Battery Type: Lithium-Ion Polymer Battery

Operating Duration: Approximately 15 ... 20 hours (depending on display brightness)

Thermocouple Length: Approximately 1 meter

Menu Language: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish

Protection Class: IP52

Operating Conditions: -20 ... 65°C, 10 ... 95% r.H.

Dimensions: 165 x 85 x 32 mm (L x W x H)

Weight: 255 g

- Delivery Scope:

1 x 4-Channel Contact Thermometer PCE-T 420

4 x K-Type Wire Probes (TF-500)

1 x USB-C Cable

1 x USB Stick with Manual and PC Software

1 x Device Case

1 x Quick Start Guide
