Specification:
Differential pressure:
Measurement range up to: -2.5 ... +2.5 kPa
Resolution: 0.01 kPa
Accuracy: ±1 % FS
Differential pressure:
Measurement range up to: -25 ... +25 mbar
Resolution: 0.1 mbar
Accuracy: ±1 % FS
General technical data:
Measuring functions: MIN, MAX, HOLD, AVG
Units: inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O
Display type: LC colour display
Storage medium: Internal memory
Storage capacity: 15996 Measurements
Storage interval from: 1 s
Storage interval to: 9999 s
Interface: USB-C
Operating time: 13 h
Automatic power-off from...to: 1 ... 99 min.
Automatic power-off can be deactivated: Yes
Alarm: Acoustic
Alarm modes: Above, below
Overpressure: 3 kPa
Menu language: English
Protection class (device): IP20
Power supply: 5 V
Weight: 180 g
Operating conditions: -10 ... 60 °C, 0 ... 95 % RH
Storage conditions: -10 ... 60 °C, 0 ... 95 % RH
Capacity: 1000 mAh
Dimensions ( W x H x D ): 63 x 162 x 32 mm
Delivery Scope:
1 x Pressure Gauge PCE-PME 2
2 x hose approx. 25 cm
1 x USB-A - USB-C cable (mains adapter not included)
1 x carrying case
1 x PC software (in the download area)
1 x user manual

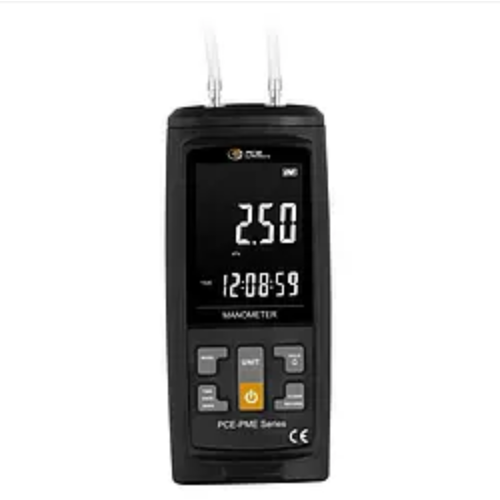

Pressure Gauge up to ±2.5 kPa / 13 selectable units / data logging and USB-C interface / PC software / export to xls file
The digital Pressure Gauge is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Pressure Gauge is suitable for measuring non-aggressive and non-explosive gases.
The Pressure Gauge offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Pressure Gauge has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.
Datasheet:
